Power Brake Unit

POWER BRAKE UNIT REMOVAL/INSTALLATION
1. Remove the battery and battery tray.
2. Remove the master cylinder.
3. Remove the brake switch connector.
4. Remove the accelerator pedal.

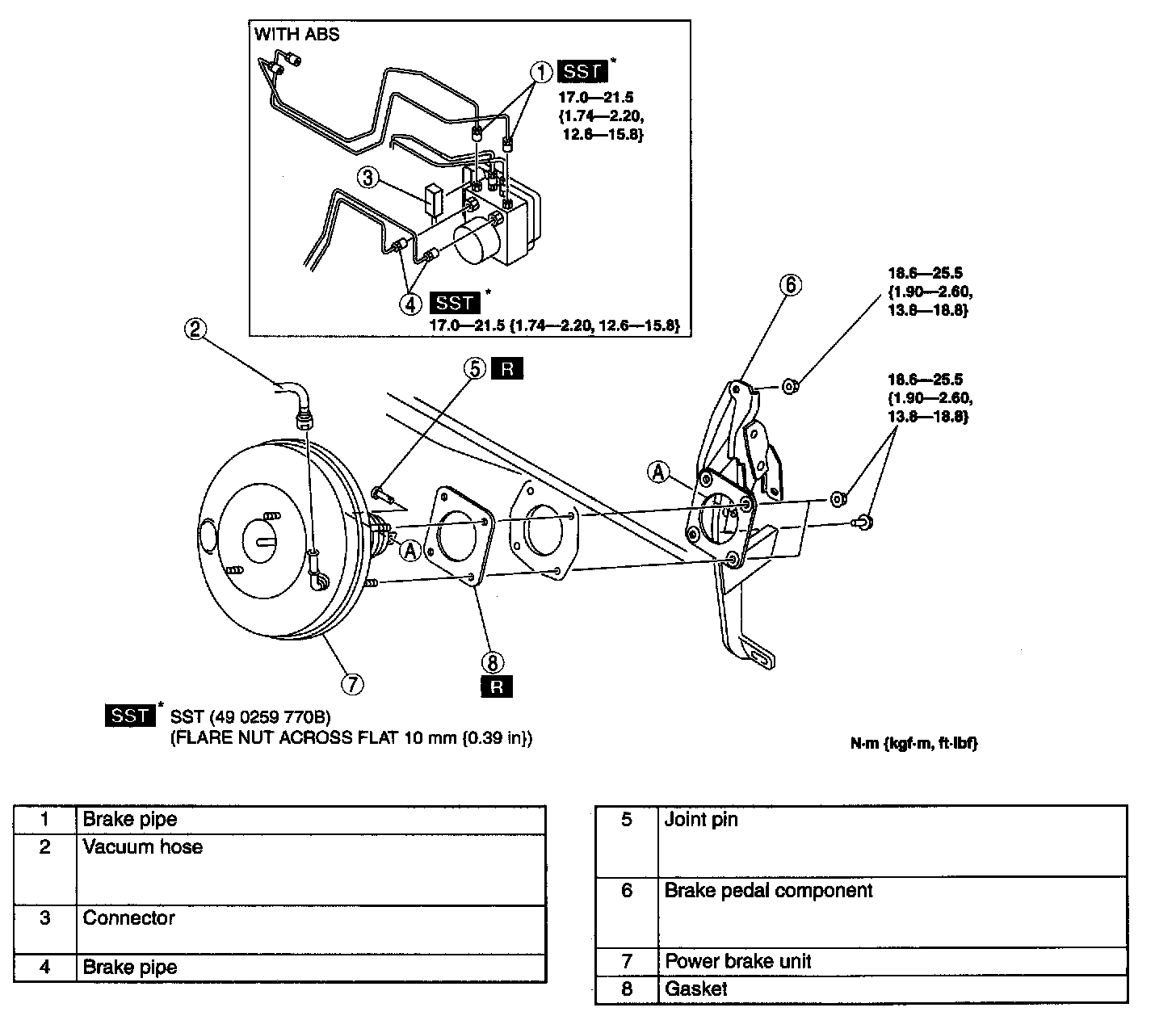

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.





7. After installation, inspect the brake pedal.

Brake Pedal Component Removal Note
1. Remove the brake pedal installation bolt and nuts.
2. Move the power brake unit toward the vehicle rear.
3. Remove the brake pedal component.
