Hood Sensor/Switch (For Alarm): Testing and Inspection

HOOD SWITCH INSPECTION

NOTE: Hood switch has a built-in hood lock.

1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the radiator grille.
4. Disconnect the hood switch connector




5. Inspect for continuity between the hood switch terminals A and B using an ohmmeter.
- If there is no continuity, replace the hood switch.

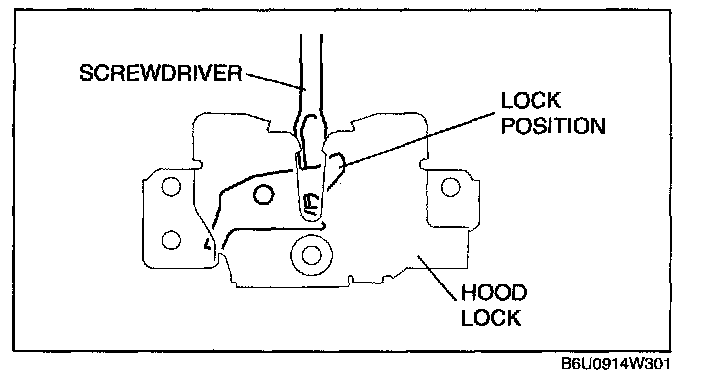

6. Lock the hood lock using a flathead screwdriver or equivalent as shown.
7. Inspect for continuity between the hood switch terminals A and B using an ohmmeter.
- If there is continuity, replace the hood switch.

CAUTION: After the inspection, unlock the hood lock. If closing the hood with the hood lock locked, the hood lock and/or hood striker may be broken.
