Trunk / Liftgate Latch: Testing and Inspection

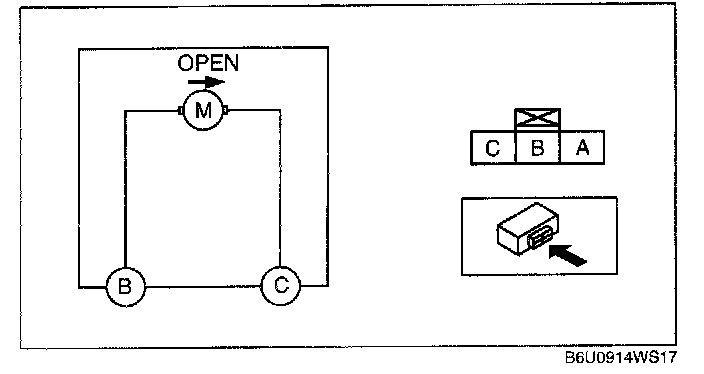

TRUNK LID OPENER INSPECTION [4SD]

1. Disconnect the trunk lid opener connector.

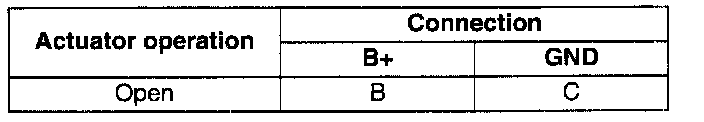

2. Apply battery positive voltage to the trunk lid opener terminals and inspect the trunk lid opener operation.
- If not as specified, replace the trunk lid opener.
