Parking Brake Lever: Service and Repair
PARKING BRAKE (LEVER TYPE) REMOVAL/INSTALLATION 1.
Remove the console.
2.
Remove the rear seat cushion.
3.
Remove the exhaust pipe.
4.
Remove the exhaust pipe insulator.
5.

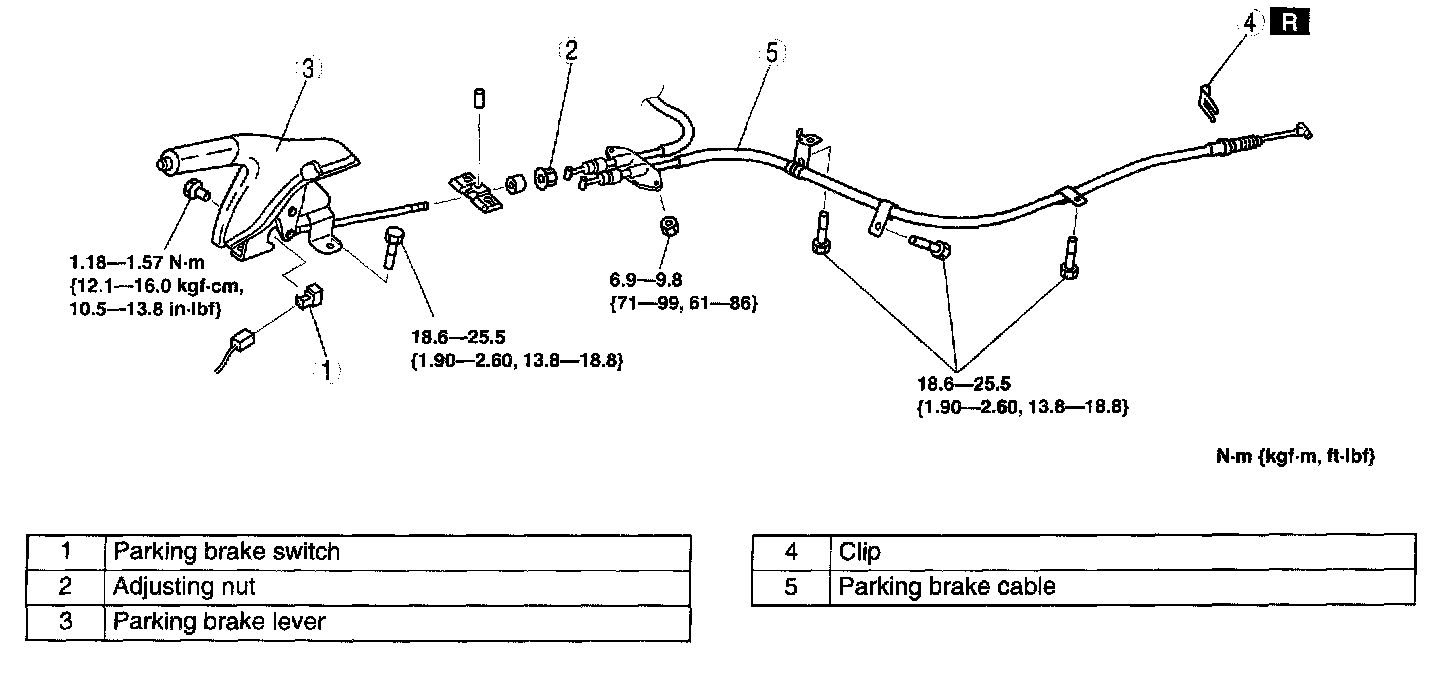

Remove in the order indicated in the table.
6.
Install in the reverse order of removal.
7.
Adjust the parking brake stroke.
