With Scan Tool

DTCs Reading Procedure

1. Perform the necessary vehicle preparation and visual inspection.

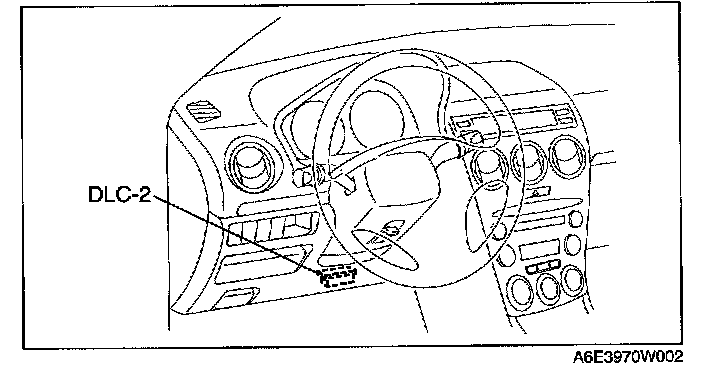

2. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located at the left side of the center console.
3. Retrieve DTCs by WDS or equivalent.

Pending Trouble Code Access Procedure

1. Perform the necessary vehicle preparation and visual inspection.

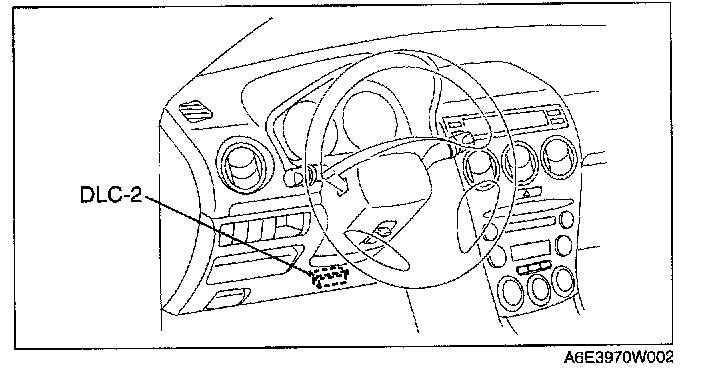

2. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located at the left side of the center console.
3. Retrieve PENDING trouble codes by WDS or equivalent.
