Sunroof / Moonroof Relay: Testing and Inspection

SUNROOF RELAY INSPECTION

NOTE: Sunroof relay is built in the sunroof motor.

1. Remove the headliner.
2. Connect the sunroof switch connector.
3. Measure the voltage at the sunroof relay terminals as indicated below.
4. Disconnect the sunroof relay connector before inspecting for continuity at terminal 1G.
- If not as specified, inspect the parts listed under "Action" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the sunroof relay.

5. Connect the negative battery cable.

Terminal 1A - 1G:

Terminal 1H - 2B:

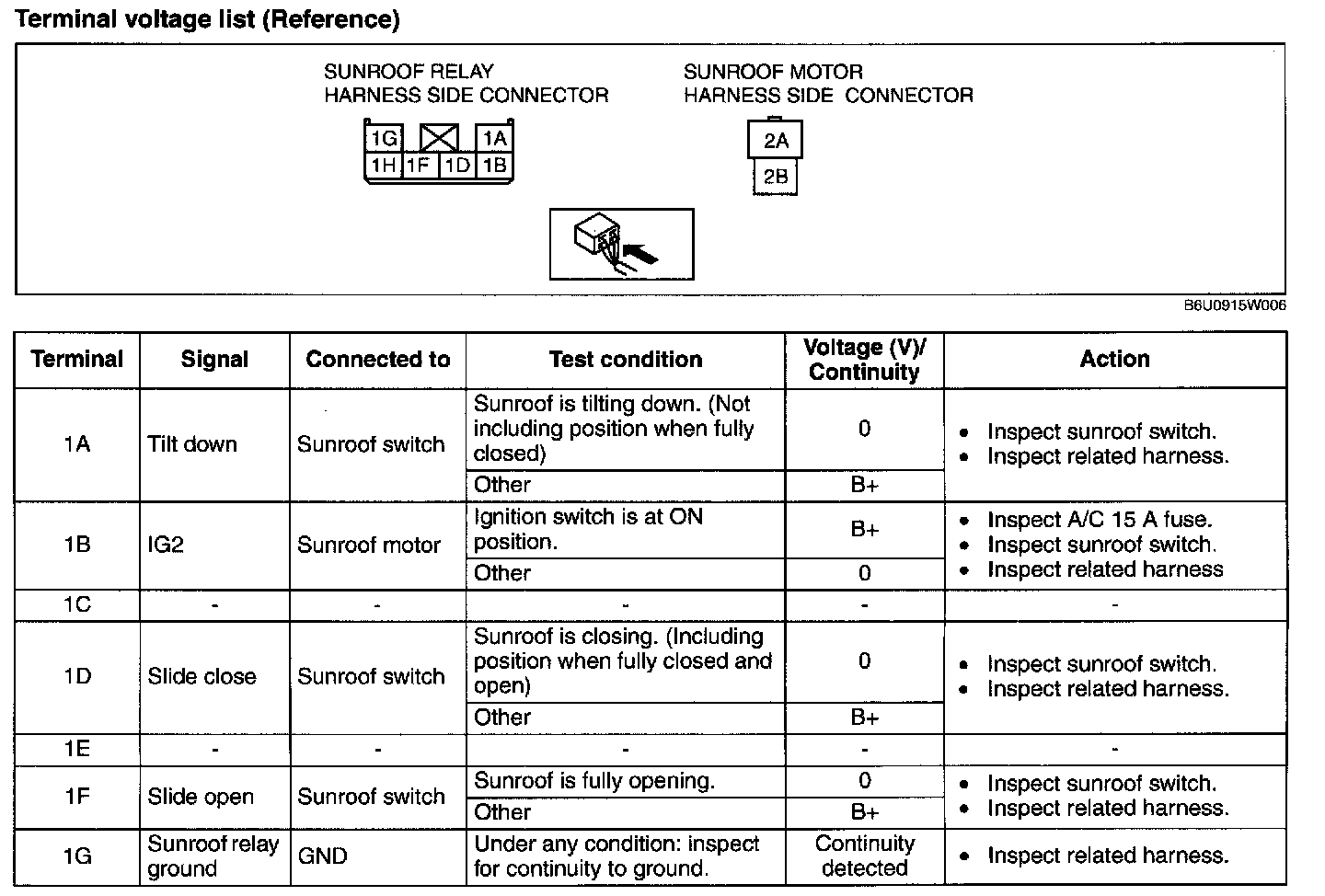

Terminal Voltage List (Reference)
