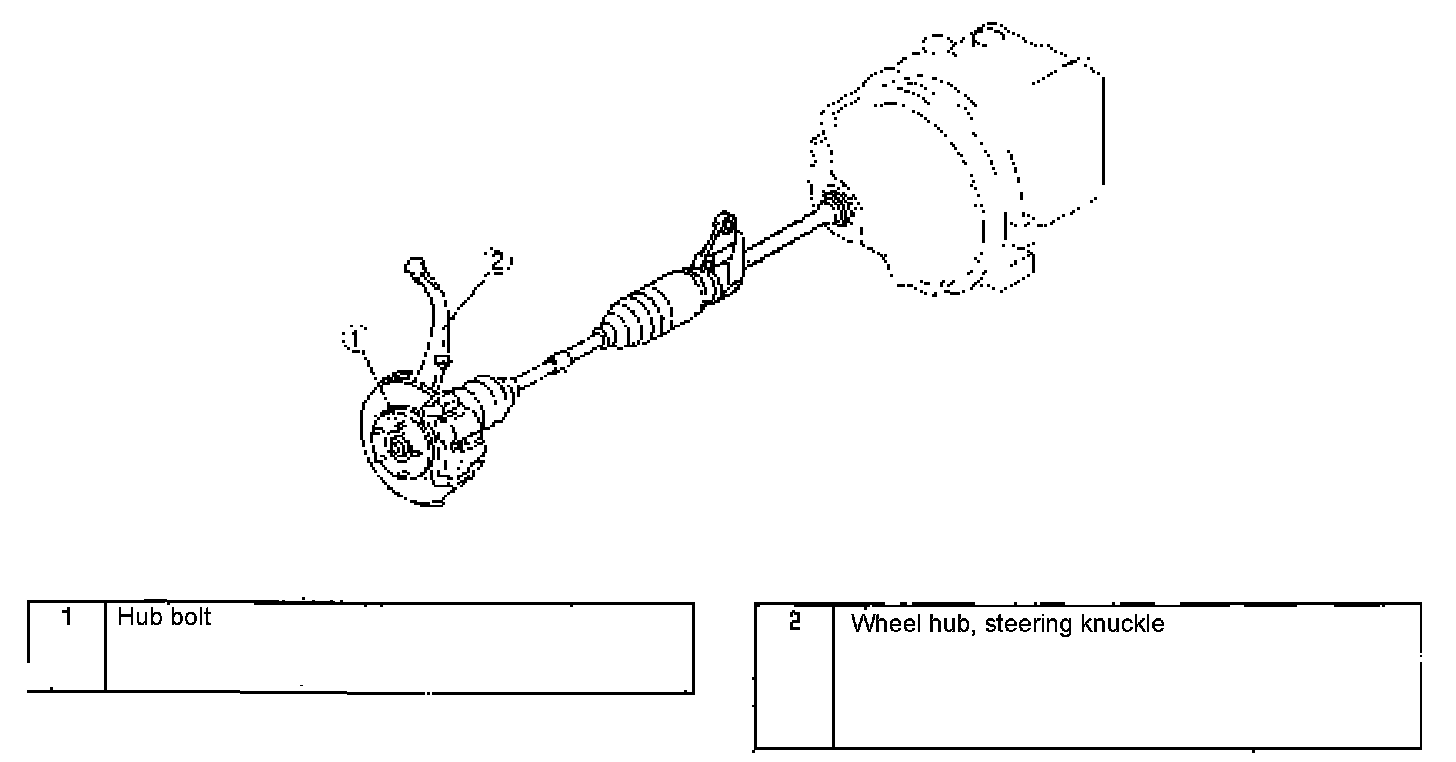

Front Steering Knuckle: Testing and Inspection
Wheel Bearing Play Inspection 1.
Position a dial indicator against the
wheel hub.
2.
Push and pull the
wheel hub by hand in the axial direction and measure the
wheel bearing play.
Maximum
wheel bearing play
0.05 mm (0.002 inch) 3.
If the bearing play exceeds the specification, replace and tighten the locknut to the specified torque and test.
^
Replace the
wheel bearing as necessary.
