Diagnostic Index

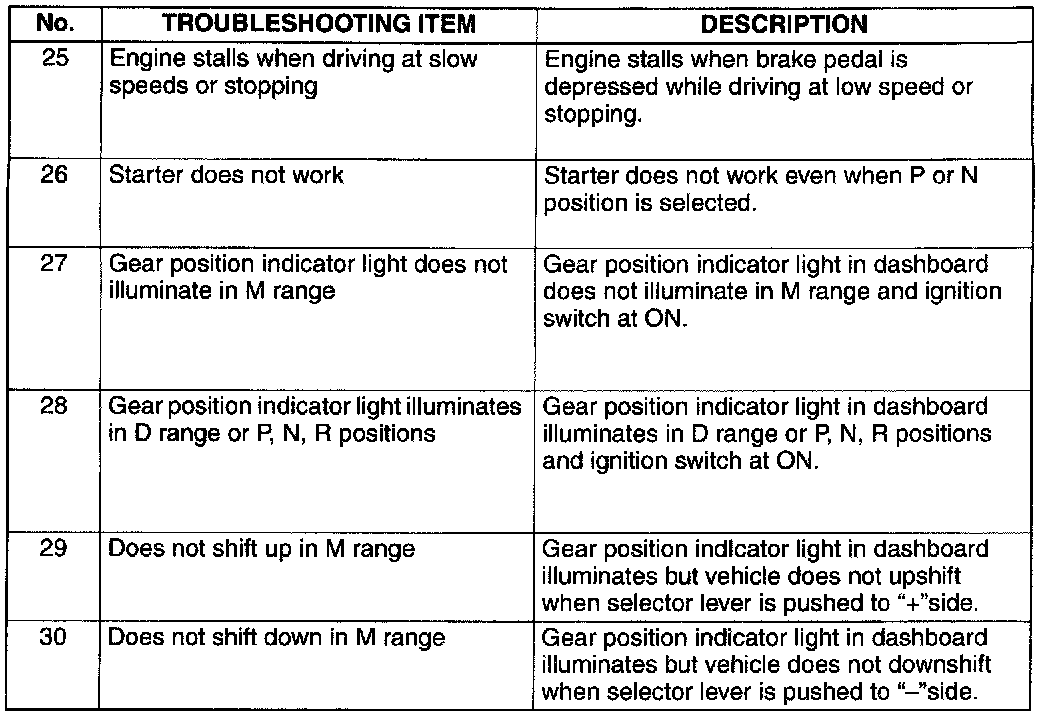

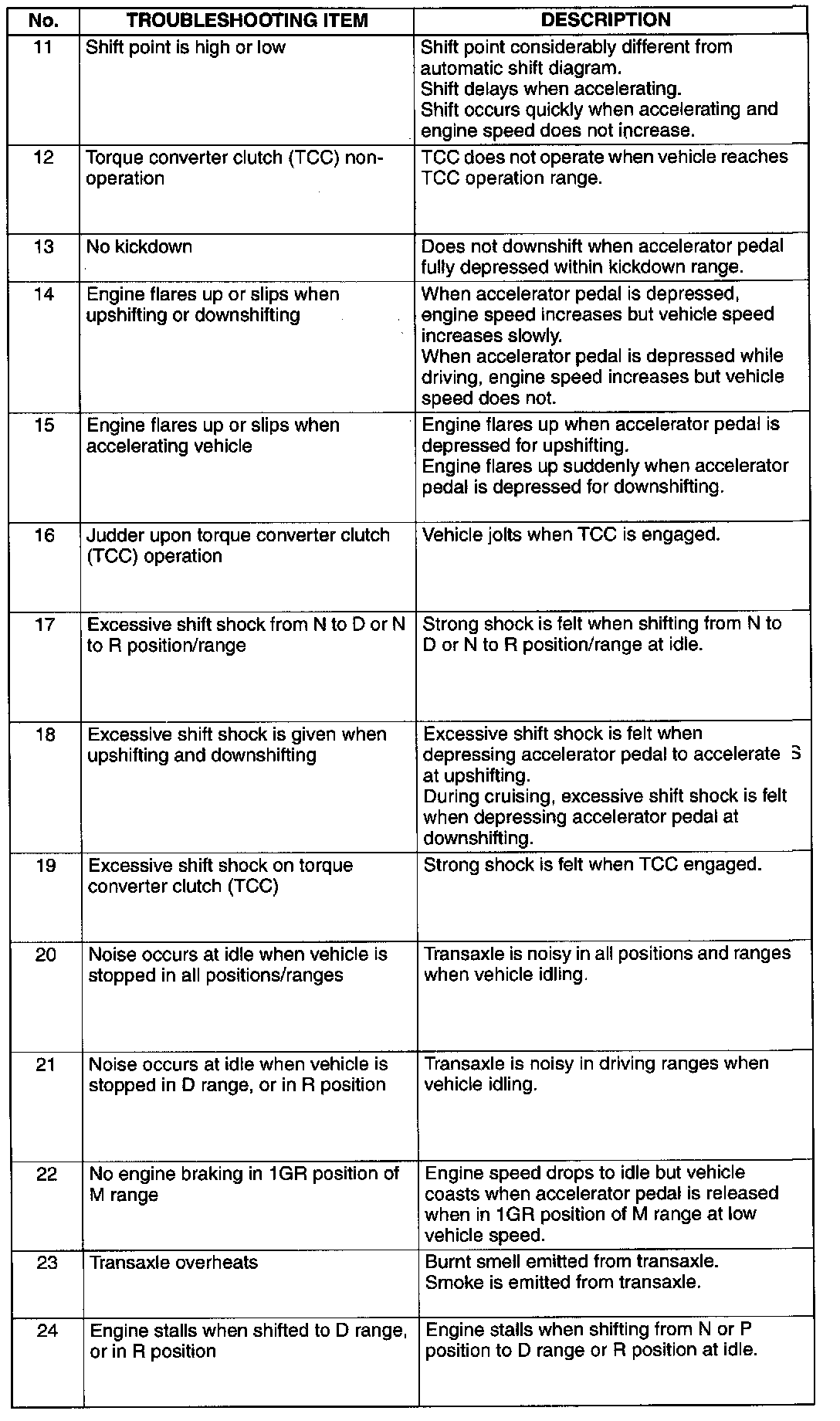

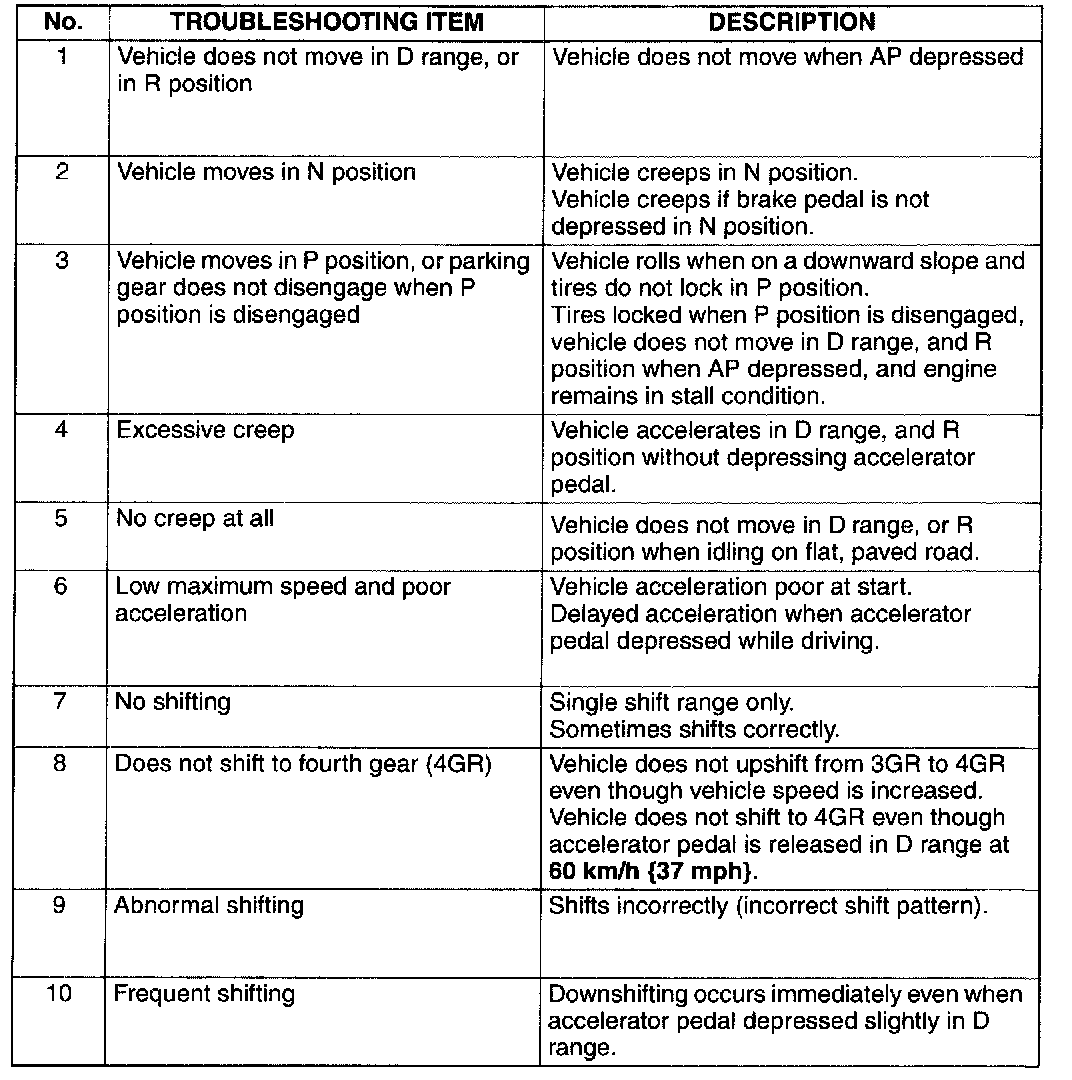

SYMPTOM TROUBLESHOOTING ITEM TABLE [FN4A-EL] C6

Part 1:




Part 2:




Part 3:





^ Use the chart to verify the symptoms of the trouble area on order to release the appropriate area.
