4TH Gear Thrust Clearance

4th Gear Thrust Clearance

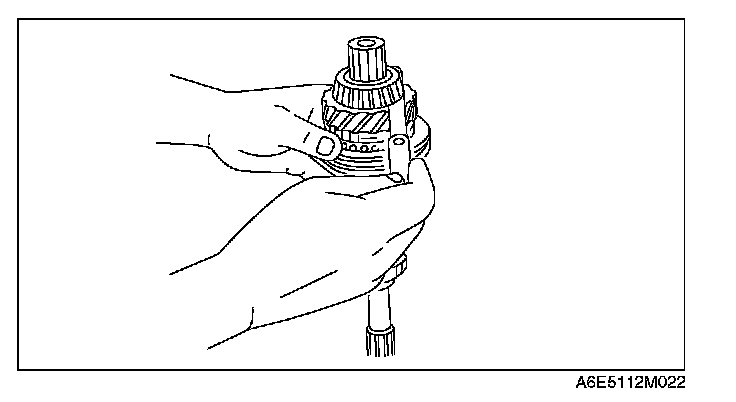

1. Measure the clearance between 4th gear and the bearing.
^ If the clearance exceeds the maximum, check the contact surfaces of the 4th gear, bearing, and 3rd/4th clutch hub. Replace worn and damaged parts.

Clearance:
0.17 - 0.37 mm (0.007 - 0.014 in)
Maximum:
0.42 mm (0.017 in)
