Tailgate: Testing and Inspection

TAILGATE INSPECTION

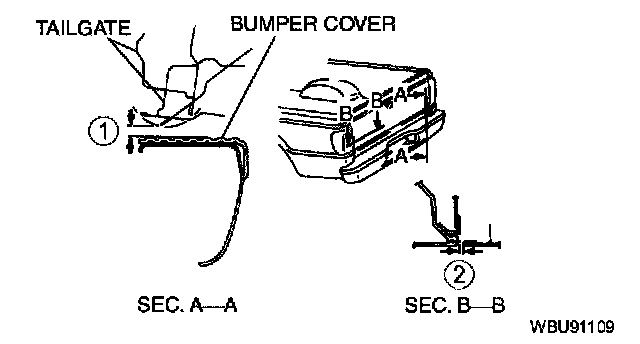

1. Inspect the clearance between the tailgate and the rear bumper cover.

Clearance (1): 13-25 mm (0.51-0.98 in.)

2. Inspect the clearance between the tailgate and the rear lamp assembly.

Clearance (2): 3-9 mm (0.12-0.35 in.)

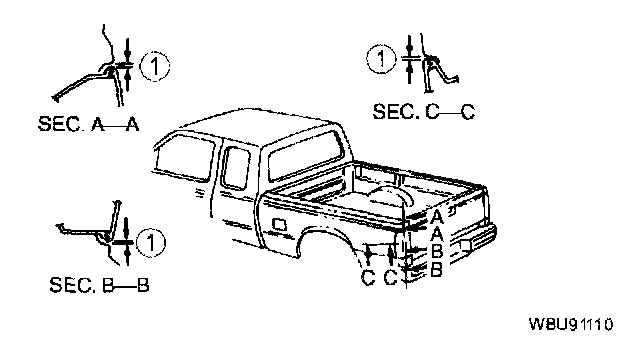

3. Inspect the clearance between the outer side body panel and the top, bottom and the forward portion of the rear lamp assembly.

Clearance (1): 0-0.3 mm(0-0.12 in.)
