Speed Sensor, Front

SPEED SENSOR REMOVAL / INSTALLATION
1. Raise and support the vehicle.

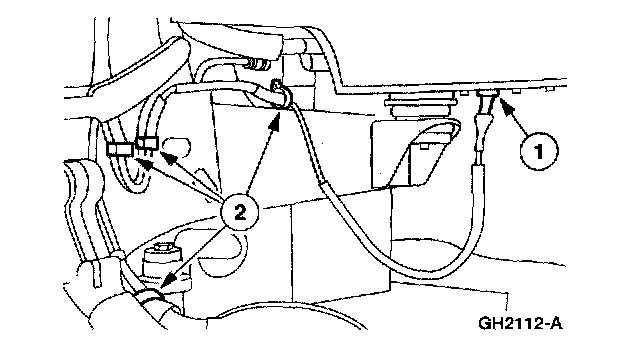

2. Disconnect the front antilock brake sensor wire from the vehicle frame.
1. Disconnect the electrical connector.
2. Unclip the front antilock brake sensor wire from the vehicle frame.

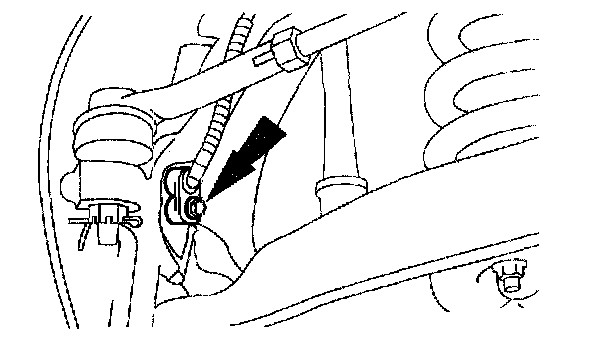

3. Remove the bolt and speed sensor.
Tightening torque 11 - 13 Nm (1.1 - 1.3 kgf-cm, 9 - 10 ft. lbs.)

Note:
^ Plug the sensor mount opening and thoroughly clean the mounting surface. Apply grease.

4. Install in reverse order of removal.
