Speed Sensor, Rotor Front
SPEED SENSOR ROTOR FRONT REMOVAL / INSTALLATION 1.
Remove the disc plate.
2.

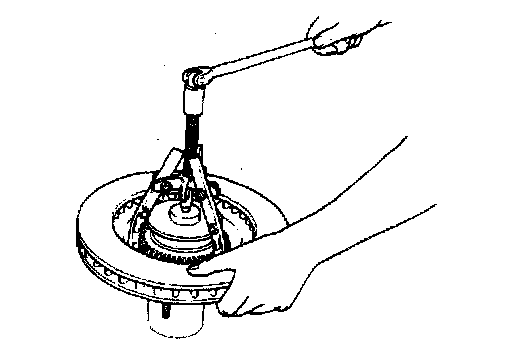

Remove the
speed sensor rotor from the disc plate using a 3jaw puller.
3.
Install in reverse order of removal.
Front Speed Sensor Rotor Installation Note 1.

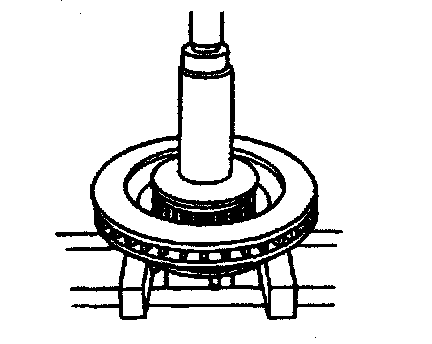

Press the new
speed sensor rotor on the disc plate using a cylinder with a
79 mm (3.1 inch) ID and a 96 mm (3.8 inch) OD.
