Interior Light Switch: Service and Repair
INTERIOR LAMP SWITCH REMOVAL / INSTALLATION 1.
Remove the front door trim panel.
2.

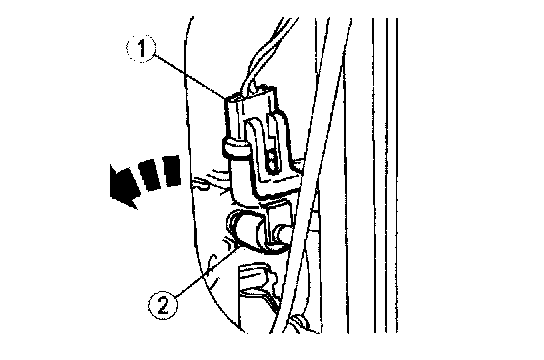

Remove in order shown in figure.
1.
Electrical connector
2.
Interior lamp switch
NOTE: Push inward, rotate counterclockwise.
3.
Install in reverse order of removal.
