Dimmer Switch: Service and Repair
DIMMER SWITCH REMOVAL / INSTALLATION 1.
Remove the instrument cluster finish panel. See INSTRUMENT PANEL REMOVAL / INSTALLATION.
2.

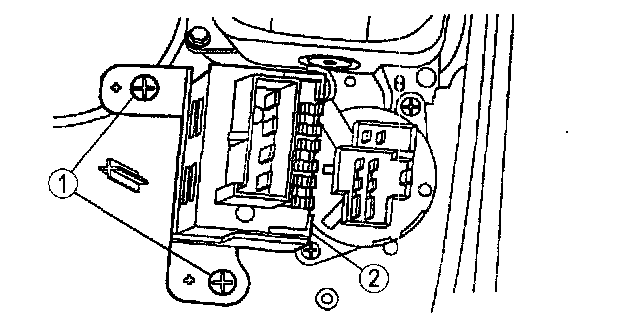

Remove in the order shown in figure.
1.
Screws
2.
Dimmer switch 3.
Install in reverse order of removal.
Tightening torque:
2 - 3 N.m {20 - 31 kgf.cm, 18 - 26 in.lbf }
