Variable Induction Control Actuator: Service and Repair
SWIRL CONTROL SOLENOID VALVE REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.

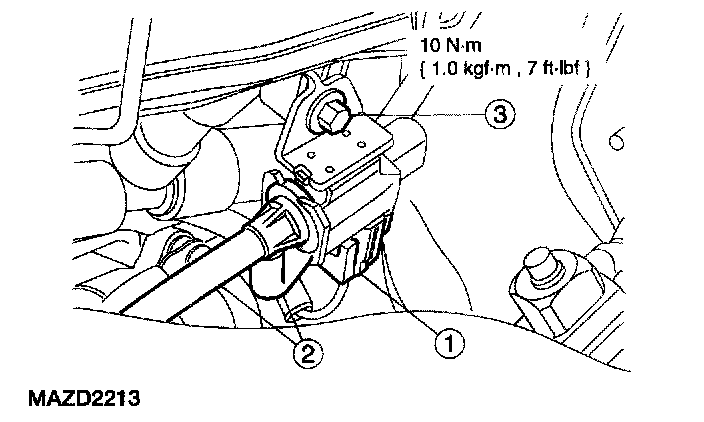

Remove the intake manifold runner control actuator.
1.
Disconnect the electrical connector.
2.
Disconnect the vacuum lines.
3.
Remove the bolt and the swirl control
solenoid.
3.
To install, reverse the removal procedure.
