System Specifications

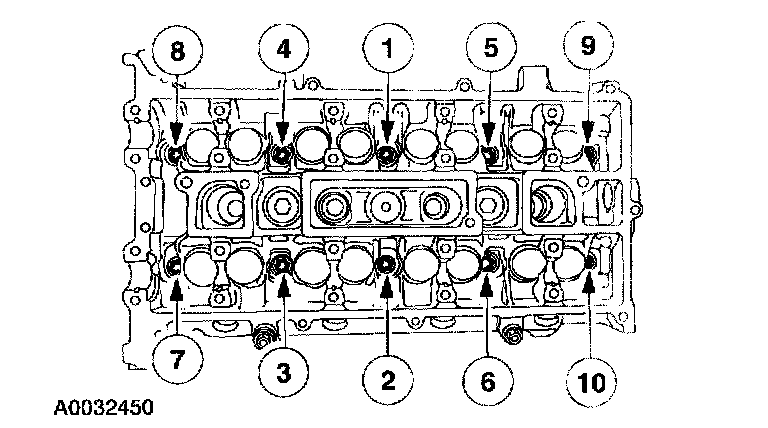

Cylinder Head Torque and Sequence





Install the cylinder head and lubricate the cylinder head bolts with clean engine oil. Install the cylinder head bolts and tighten the bolts in the sequence shown in five stages.
Stage 1: Tighten the bolts to 5 Nm (0.51 kgf-cm, 4 ft. lbs.)
Stage 2: Tighten the bolts to 15 Nm (1.5 kgf-cm, 11 ft. lbs.)
Stage 3: Tighten the bolts to 45 Nm (4.59 kgf-cm, 33 ft. lbs.)
Stage 4: Turn the bolts 90 degrees
Stage 5: Turn the bolts an additional 90 degrees

Head Bolt Reuse/Replace
Note:
^ Reuse cylinder head bolts

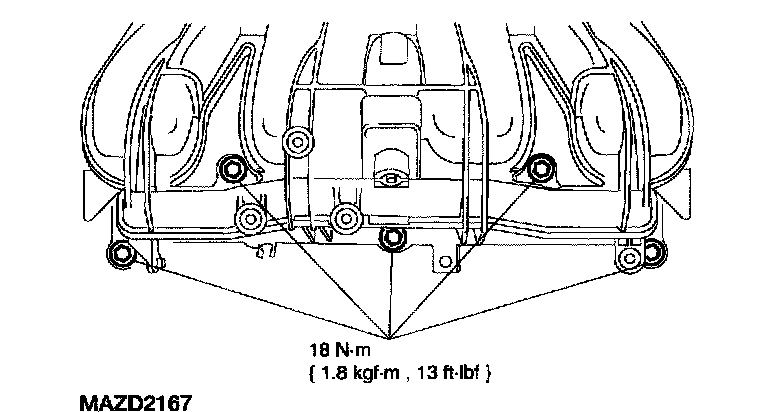

Intake Manifold Torque and Sequence

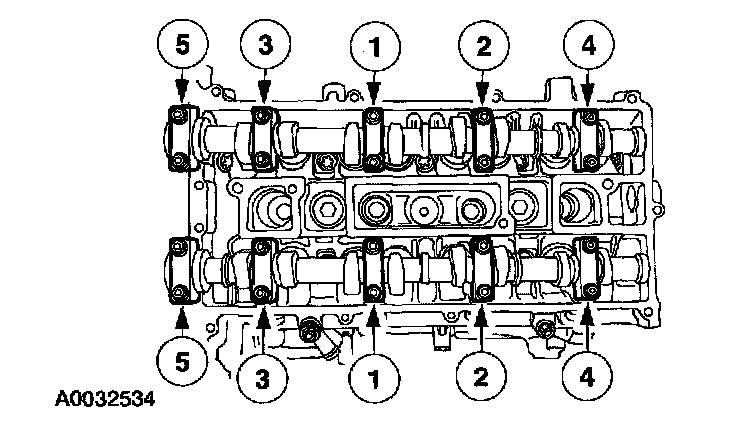

Camshaft Bearing Torque and Sequence





Install the camshafts and bearing caps. Tighten the bolts in the sequence shown in three stages.
Stage 1: Tighten the camshaft bearing bolt caps one turn at a time until tight.
Stage 2: Tighten the bolts to 7 Nm (0.71 kgf-cm, 5 ft. lbs.)
Stage 3: Tighten the bolts to 16 Nm (1.6 kgf-cm, 12 ft. lbs.)

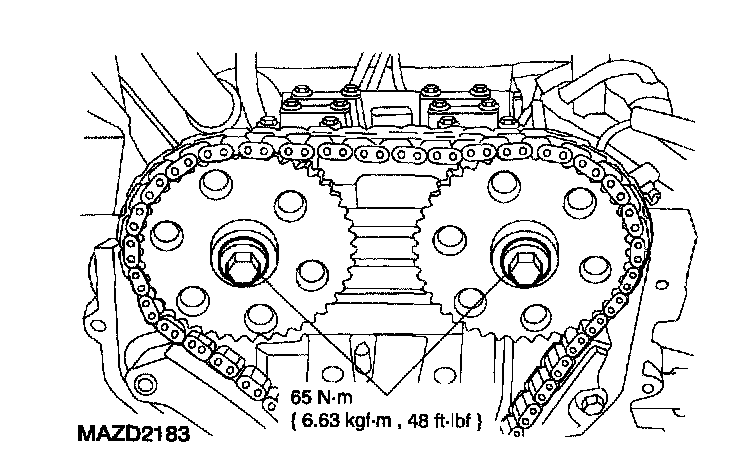

Camshaft Pulley/Gear Torque

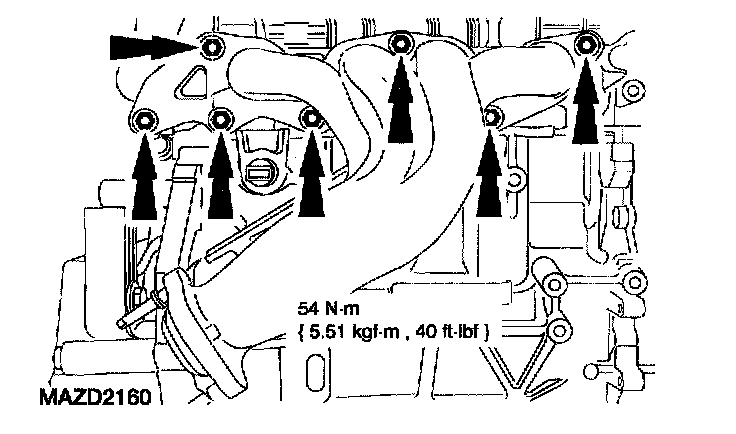

Exhaust Manifold Torque & Sequence
