Shift Cable: Service and Repair

SHIFT CABLE AND BRACKET REMOVAL / INSTALLATION

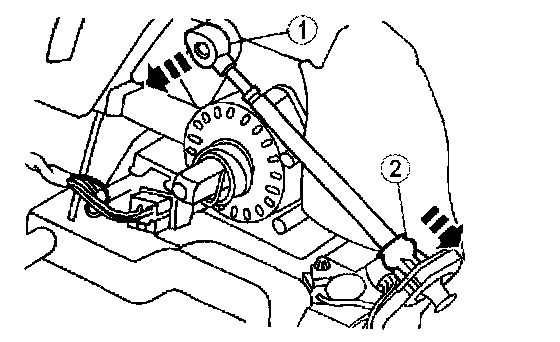

1. Disconnect the transmission shift cable from the steering column.
1) Disconnect the shift cable from the transmission column shift selector tube.
2) Disconnect the shift cable from the steering column bracket.
2. Push the rubber grommet and shift cable through the bulkhead.
3. Raise and support the vehicle.

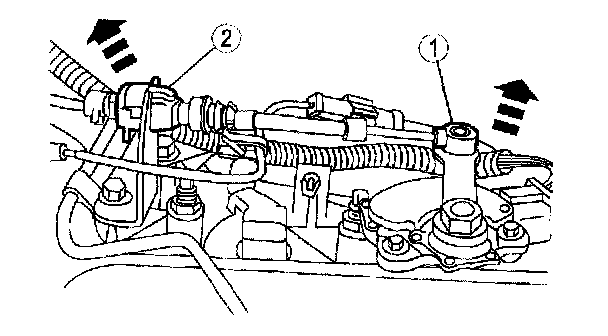

4. Remove the shift cable from the automatic transmission.
1) Disconnect the shift cable from the manual control lever.
2) Depress the lock tabs to release the shift cable and disconnect the shift cable from the shift cable bracket.

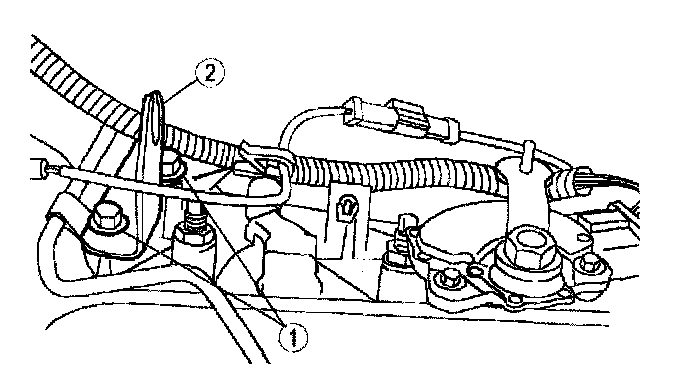

5. Remove the transmission shift cable bracket from the automatic transmission.
1) Remove the bolts.
2) Remove the transmission shift cable bracket.

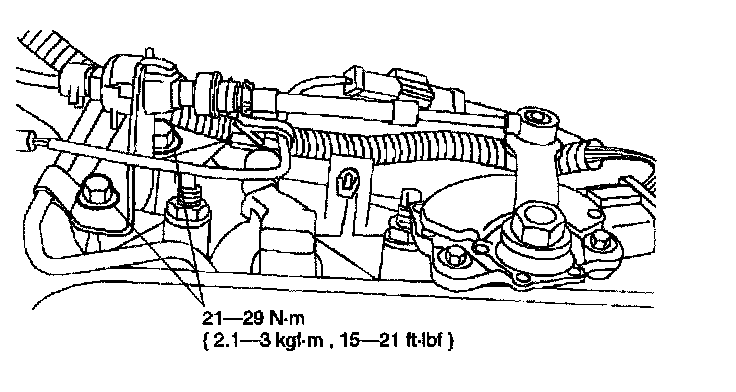

6. Install in reverse order of removal.
1) Move manual lever into overdrive (O/D) range.
2) Adjust the transmission shift cable.
