Camshaft Position (CMP) Sensor Removal/Installation
CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION 1.
Disconnect negative battery cable.
2.

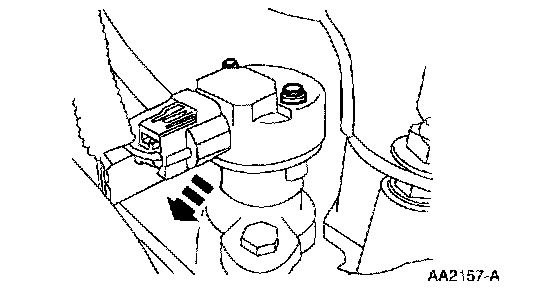

Disconnect the connector the camshaft position.
3.
Remove the screws and the CMP sensor.
4.
Install in reverse order of removal.
Tightening torque:
2.5-3.5 Nm {26-36 kgf-cm, 23-30 in-lbf}
