System Specifications


Crankshaft Pulley Torque

Note:
^ For Crankshaft Pulley Installation.

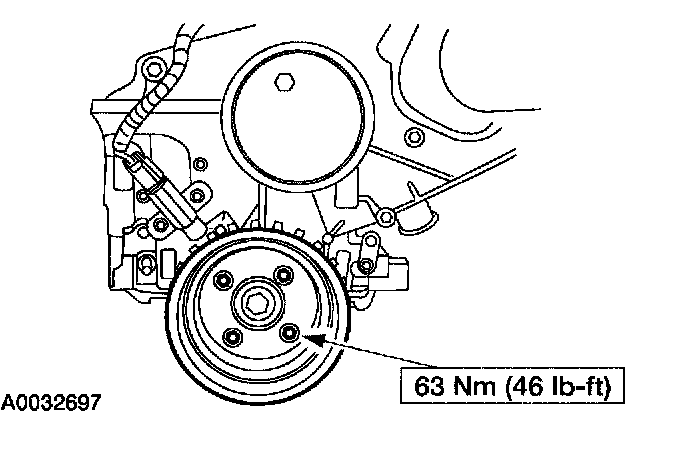

1. Using Vibration Damper and Seal Replacer ST 303 175 (T82L-6316-A) or equivalent, install the crankshaft damper.
^ Coat the sealing surfaces of the crankshaft damper with clean engine oil.
^ Coat the crankshaft damper keyway with silicone.
^ Install the crankshaft damper.

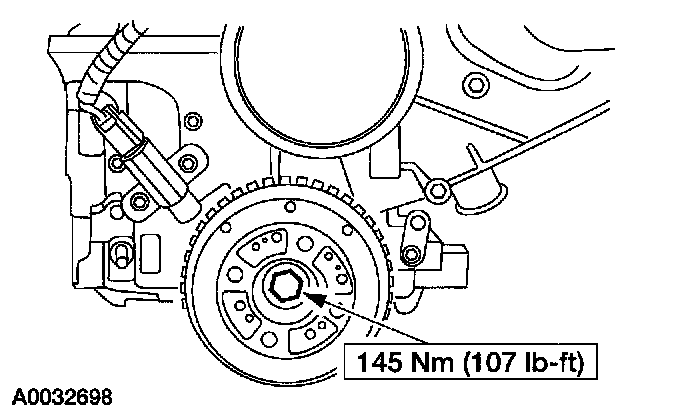

2. Install the crankshaft pulley.



Timing Cover Torque & Sequence

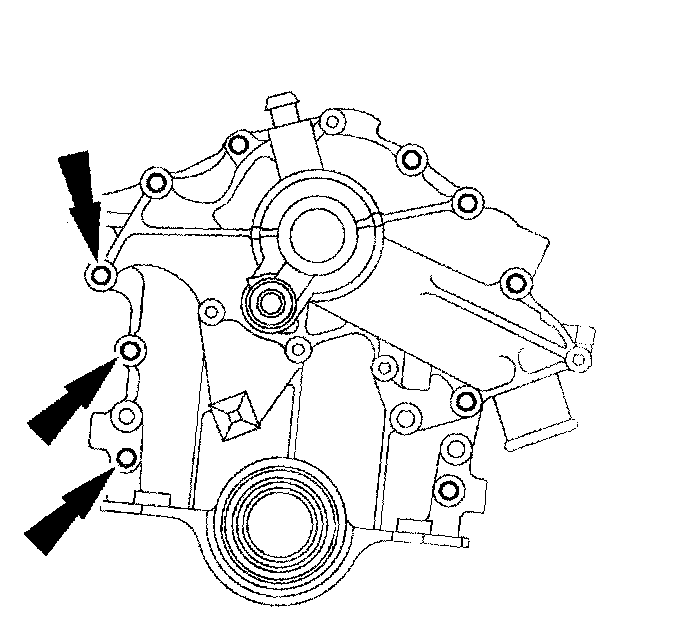

3. Apply pipe sealant with Teflon to the bolts to be installed in the locations.

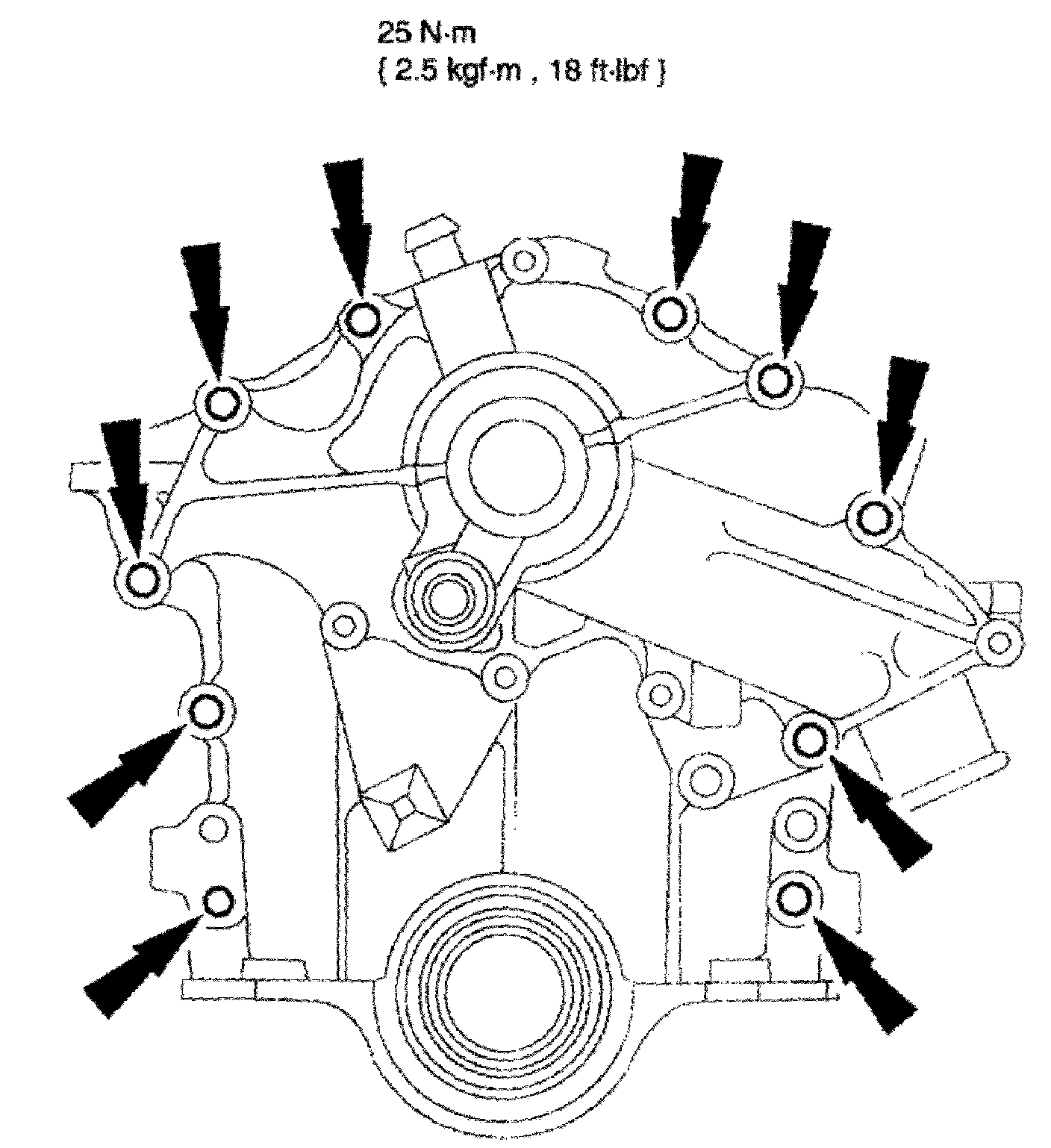

4. Install the front cover bolts
