System Specifications
Cylinder Head Torque & Sequence
1. Position the cylinder head gasket and the cylinder head.

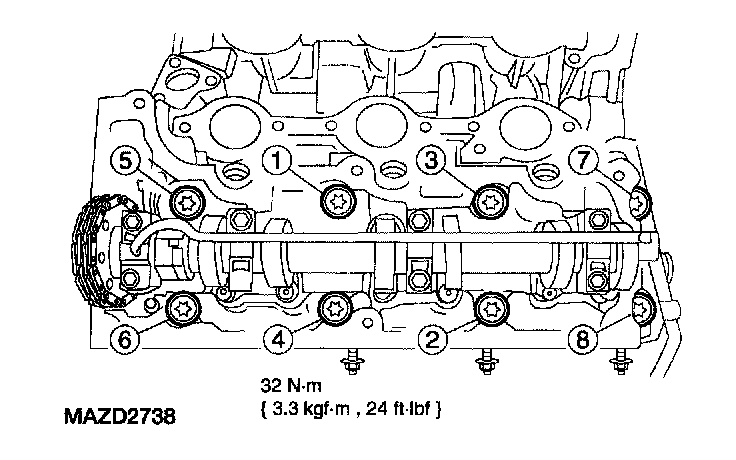

2. Install the 12 mm bolts and tighten in the sequence shown.

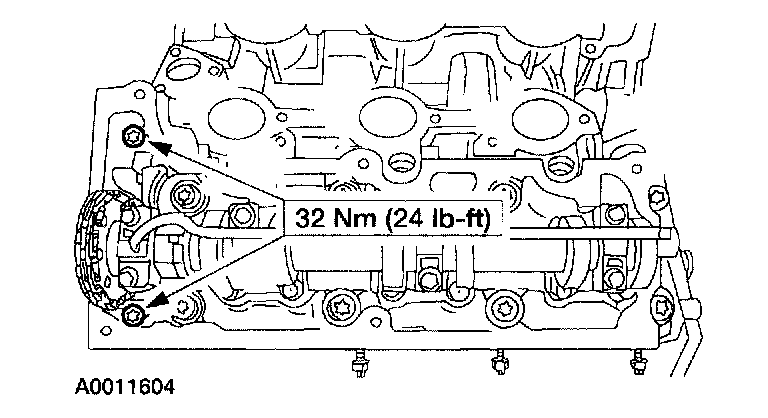

3. Install the two 8 mm bolts.

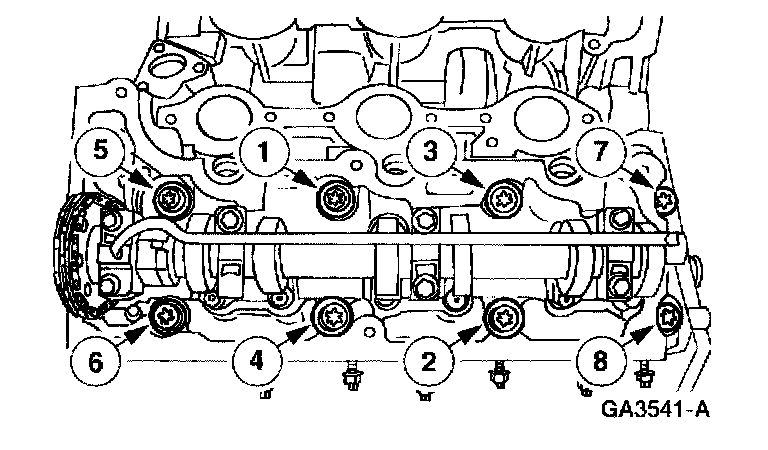

4. Tighten the eight 12 mm bolts in the sequence shown in two stages.
^ Stage 1: Tighten the bolts 80 degrees.
^ Stage 2: Tighten the bolts an additional 80 degrees.
Head Bolt Reuse/Replace
Note:
^ Reuse cylinder head bolts

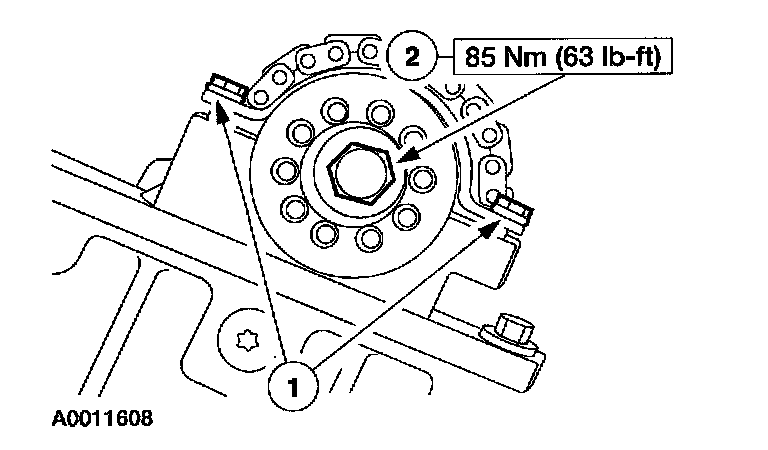

Camshaft Pulley/Gear Torque
Exhaust Manifold RH torque and sequence

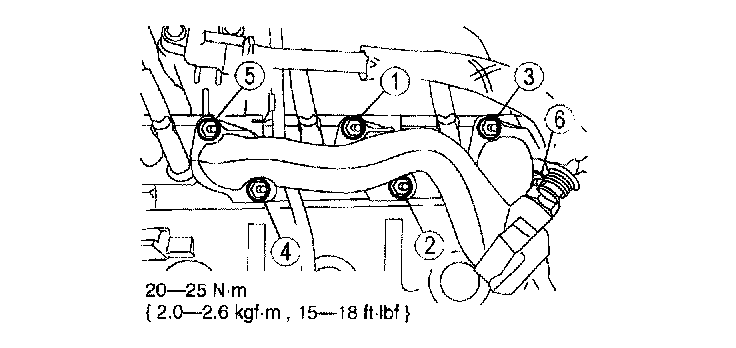

Tighten the nuts in the sequence shown.
Exhaust Manifold LH torque and sequence

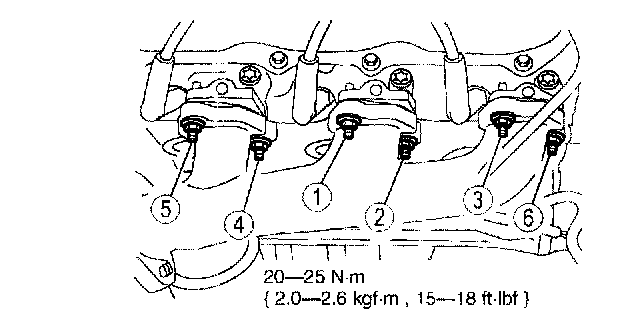

Tighten the nuts in order shown.
