Tightening Specifications
Drive belt tensioner 40 - 55 Nm (30 - 40 ft lb)
Belt idler pulley
47 Nm (35 ft lb)
Valve cover bolts
10 Nm (7 ft lb)

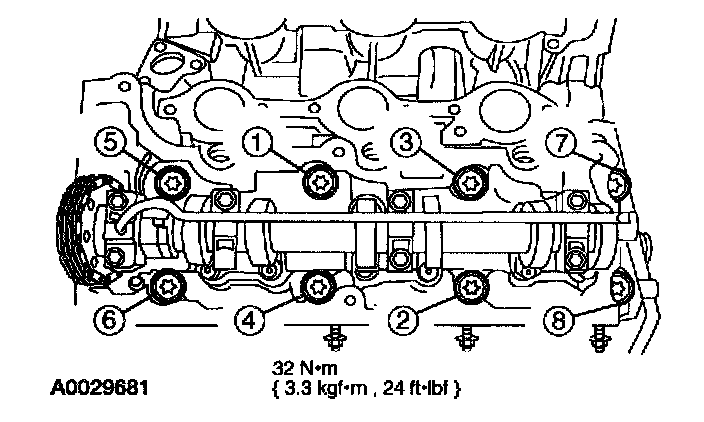

Cylinder Head Bolt Removal Sequence:

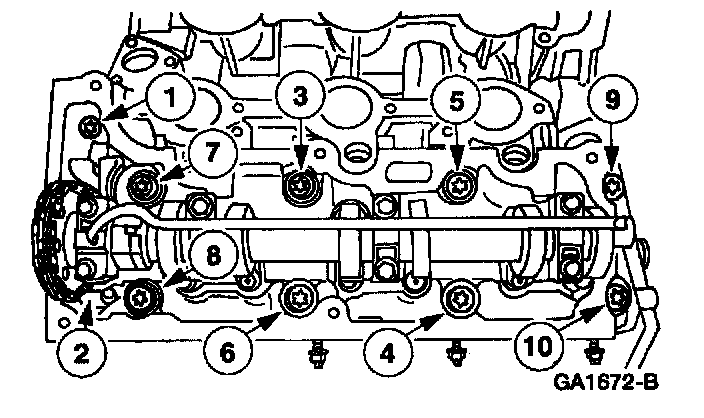

Cylinder head bolts Step 1 (12 mm bolts)
32 Nm (24 ft lb)
Step 2 (8mm bolts)
32 Nm (24 ft lb)
Step 3 (12mm bolts)
tighten 80°
Step 4 (12mm bolts)
tighten 80°

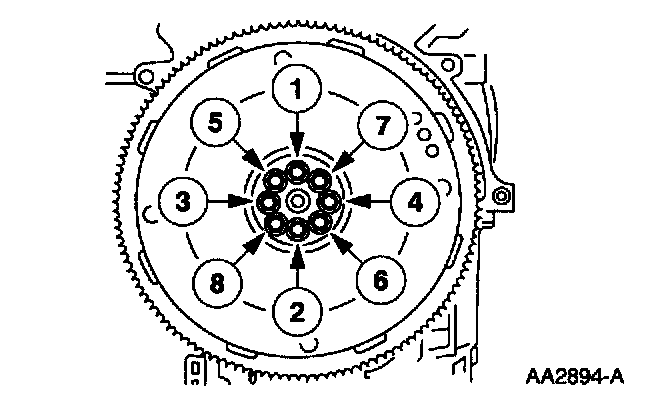

Flywheel
Step 1
13 Nm (10 ft lb)
Step 2
71 Nm (52 ft lb)
