Third-Row Seat Removal/Installation

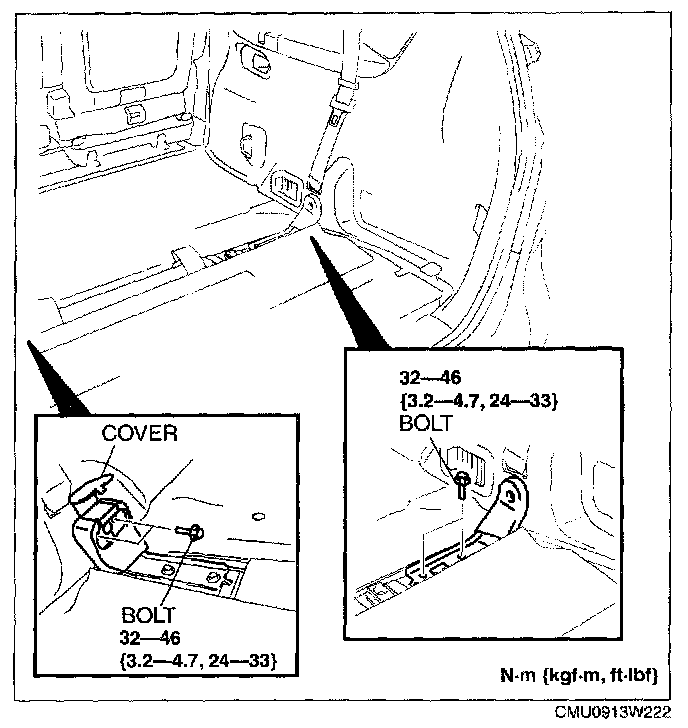

THIRD-ROW SEAT REMOVAL/INSTALLATIONSeat
1. Remove the headrests.
2. Remove the bolt. (LH)
3. Stow the third-row seat.
4. Open the cover (LH)
5. Remove the bolts and then remove the third-row seal.
6. Install in the reverse order of removal.
Hinge
1. Remove the third-row seat.
2. Remove the rear side trim.
3. Remove the third-row seat belt lower anchor.
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
Striker
1. Remove the rear side trim.
2. Remove the nuts and then remove the striker.
3. Install in the reverse order of removal.
