Attachment II - Repair Procedures
A. VEHICLE INSPECTION PROCEDURE1. Verify that the vehicle is within the following range:
^ 2004 MPV vehicles built between August 20, 2003 and May 6, 2004 VIN Range: JM3LW28**40500013 - JM3LW28**40525914
- If the vehicle is within the above range, proceed to step 2.
- If the vehicle is not within the above range, return the vehicle to the customer or inventory.
2. Perform a Vehicle Status Inquiry using your eMDCS System and inspect vehicle for an Authorized Modification Label Recall 2104F attached to the vehicle's hood. Refer to eMDCS System - Vehicle Status Inquiry Results table shown.
NOTE:
Be sure to verify RECALL number as the vehicle may have multiple Recall labels.
B. REPAIR PROCEDURE
1. Open driver's door.
2. Locate the vehicle FMVSS label on the B-pillar above the door latch striker.
3. Apply alcohol to a clean shop cloth and clean the area above the FMVSS label.
4. Allow the area to completely dry.

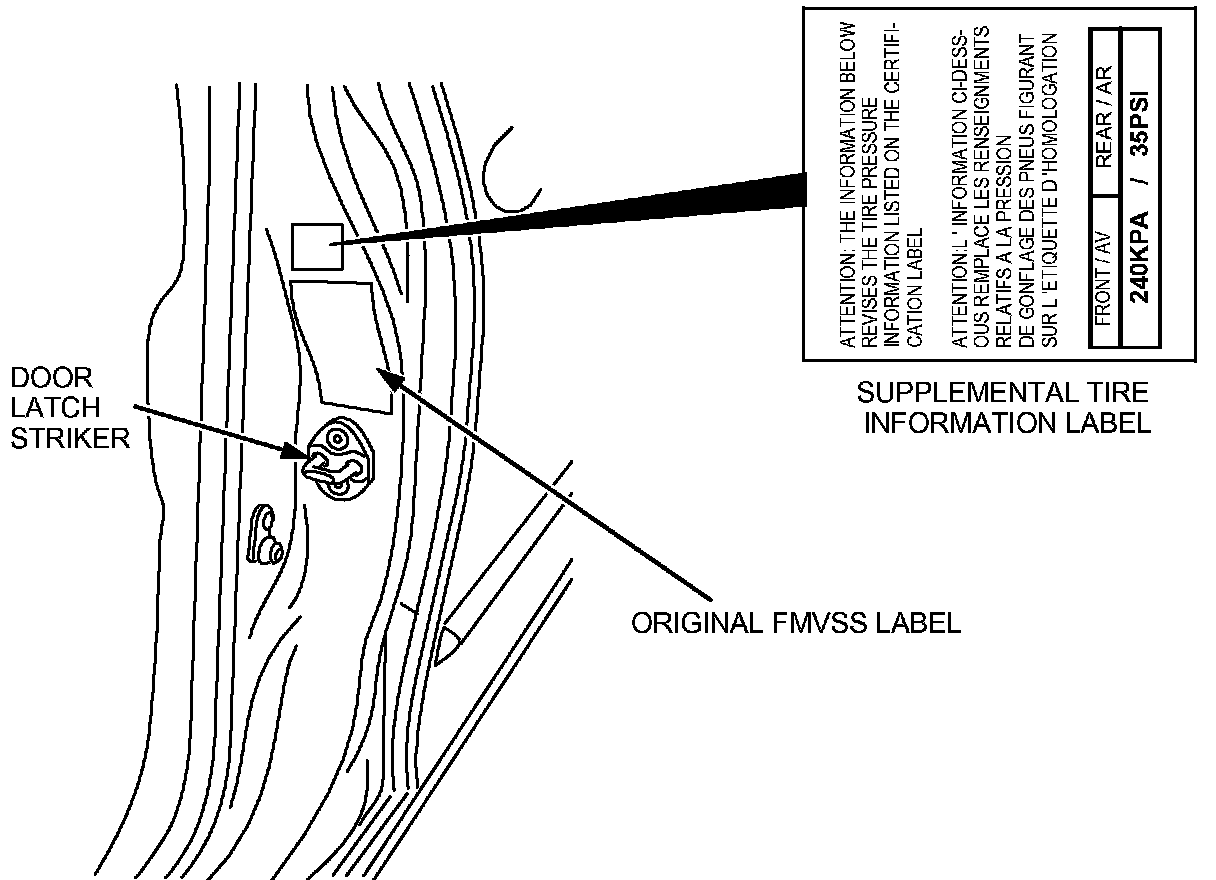

5. Peel off the backing sheet from the Supplemental Tire Information Label and affix it above the FMVSS label as shown above.
NOTE:
When affixing the Supplemental Tire Information Label, position the label as shown above.
C. AUTHORIZED MODIFICATION LABEL INSTALLATION
Complete an "Authorized Modification Label" with the Recall number written on the sticker and affix it to the vehicle's hood. Refer back to the illustration under "A. VEHICLE INSPECTION PROCEDURE".
