Seat Occupant Classification Module - Air Bag: Service and Repair

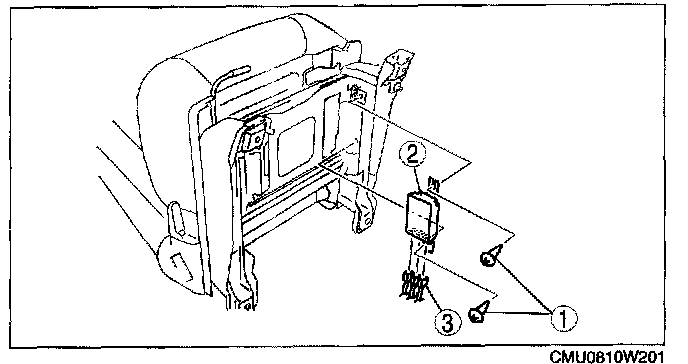

SEAT WEIGHT SENSOR CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

CAUTION: When the seat weight sensor control module is replaced with a new one, perform the seat weight sensor calibration using the WDS or equivalent. Service and Repair

1. Disconnect the negative battery cable.
2. Remove the passenger's seat.
3. Remove the seat under tray.

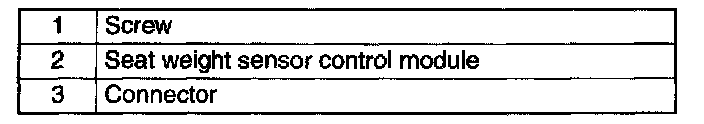

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
