Pinpoint Test 10

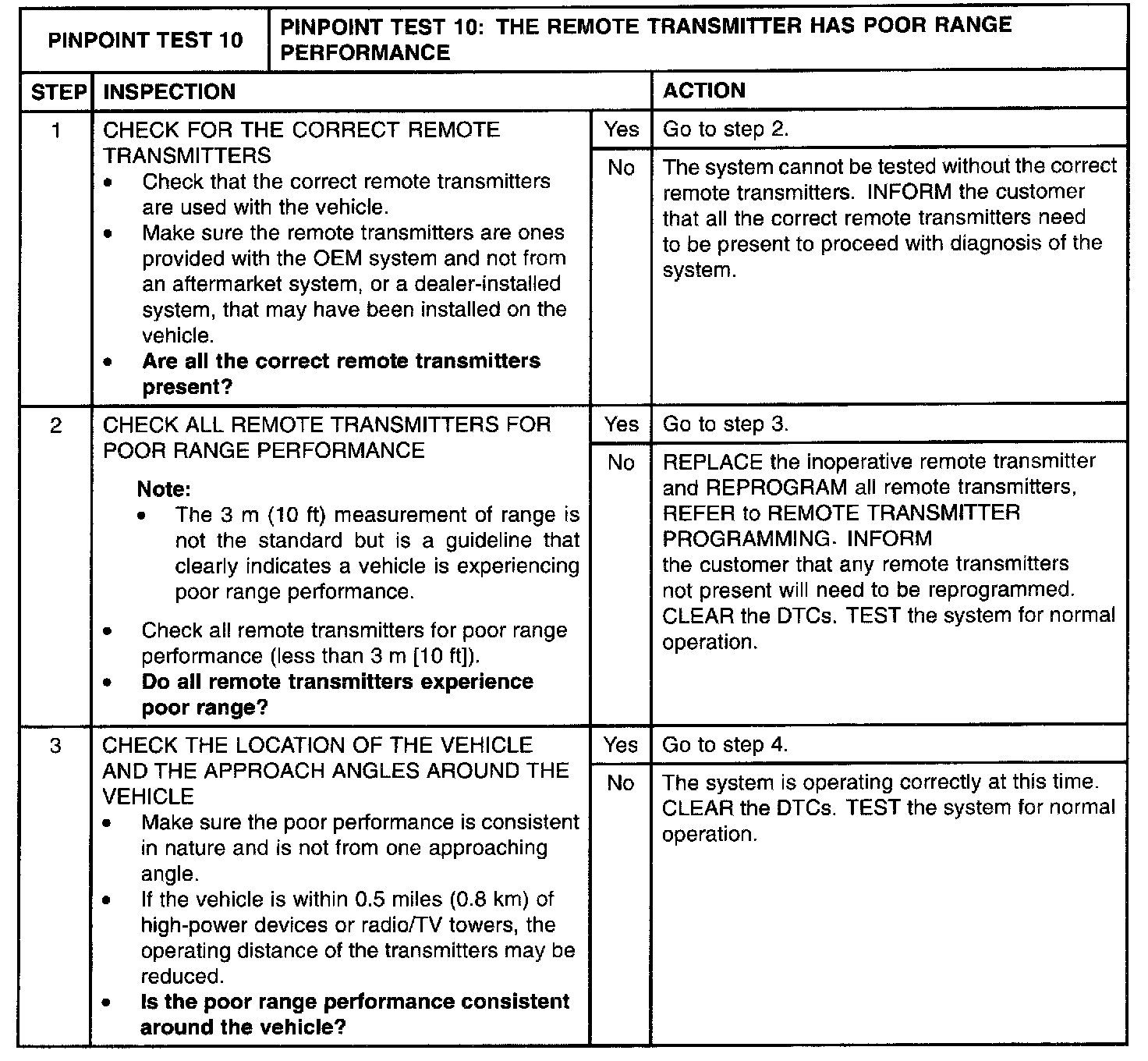

Step 1 - 3:

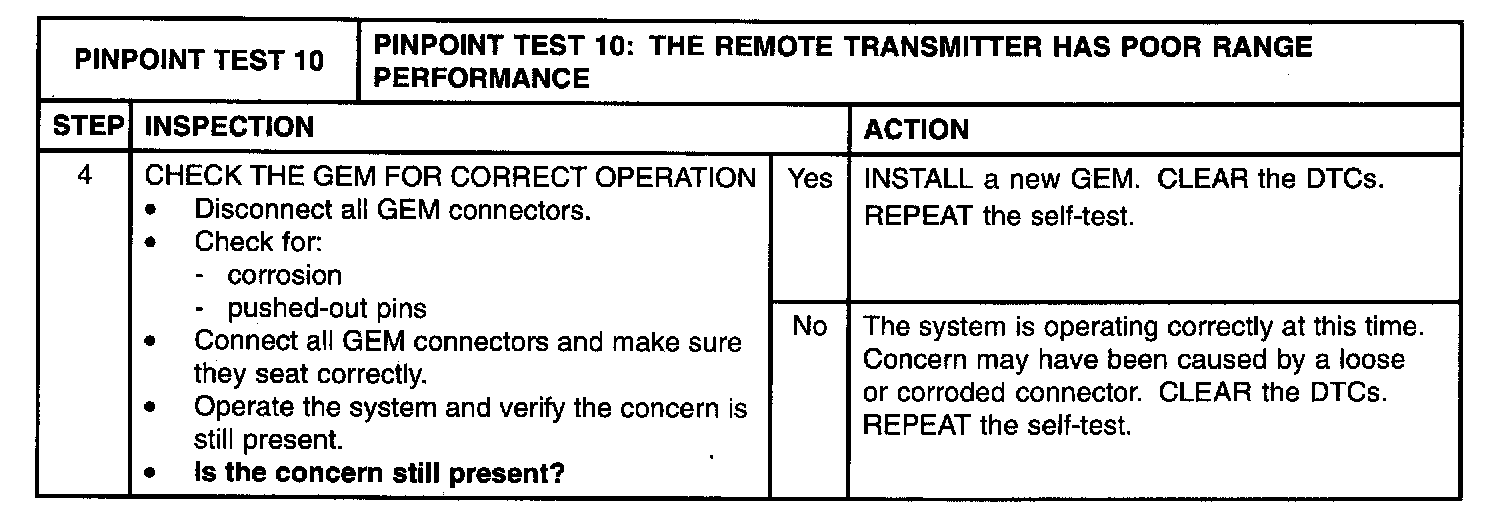

Step 4:
PINPOINT TEST 10: THE REMOTE TRANSMITTER HAS POOR RANGE PERFORMANCENOTE: All remote transmitters must be present to begin diagnosis of the remote keyless entry system.
NOTE: Aftermarket or dealer-installed systems may adversely affect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.
