Torque Converter Outline

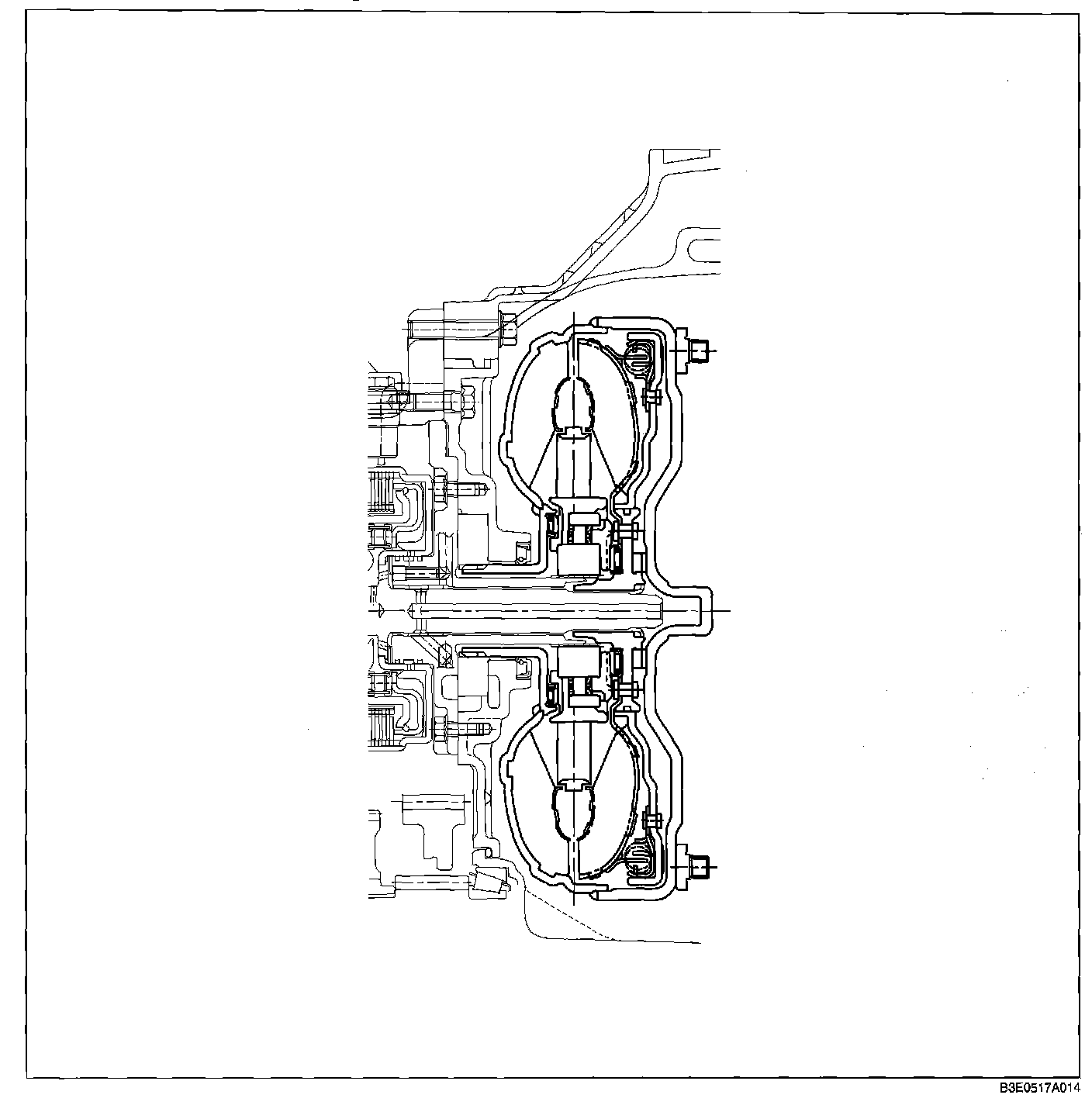

TORQUE CONVERTER OUTLINE





^ The torque converter clutch mechanism mechanically engages the pump impeller and the turbine runner under a certain condition, and transmits the power, not through the fluid, but directly, preventing the slip loss of the torque converter.
^ The torque converter has obtained sufficient transaxle efficiency and torque converting ratio that matches the output characteristic of each engine.
