Band Servo Disassembly/Assembly

BAND SERVO DISASSEMBLY/ASSEMBLY

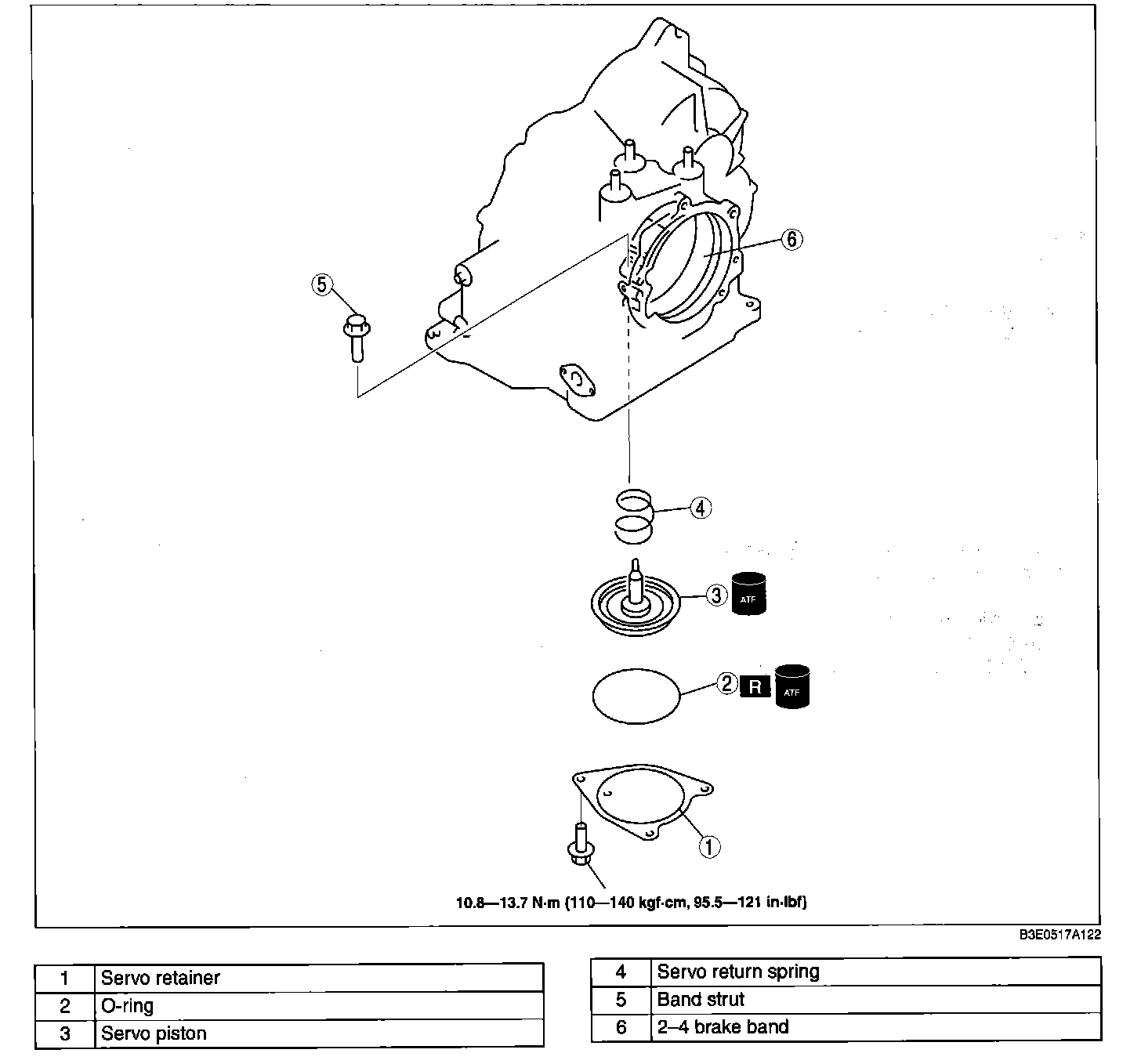

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly

Assembly Procedure
1. Measure the spring free length.





Specification

^ If not as specified, replace the spring.
2. Install the servo return spring to the transaxle case.





3. Install the servo piston to the transaxle case.





4. Apply ATF to new O-ring and install it to the transaxle case.
O-ring inner diameter 70.2 mm (2.76 inch)





5. Install the servo retainer by tightening the bolts evenly and gradually.
Tightening torque 10.8 - 13.7 Nm (110 - 140 kgf-cm, 95.5 - 121 inch lbs.)
