Overhaul

FRONT BUMPER DISASSEMBLY/ASSEMBLY

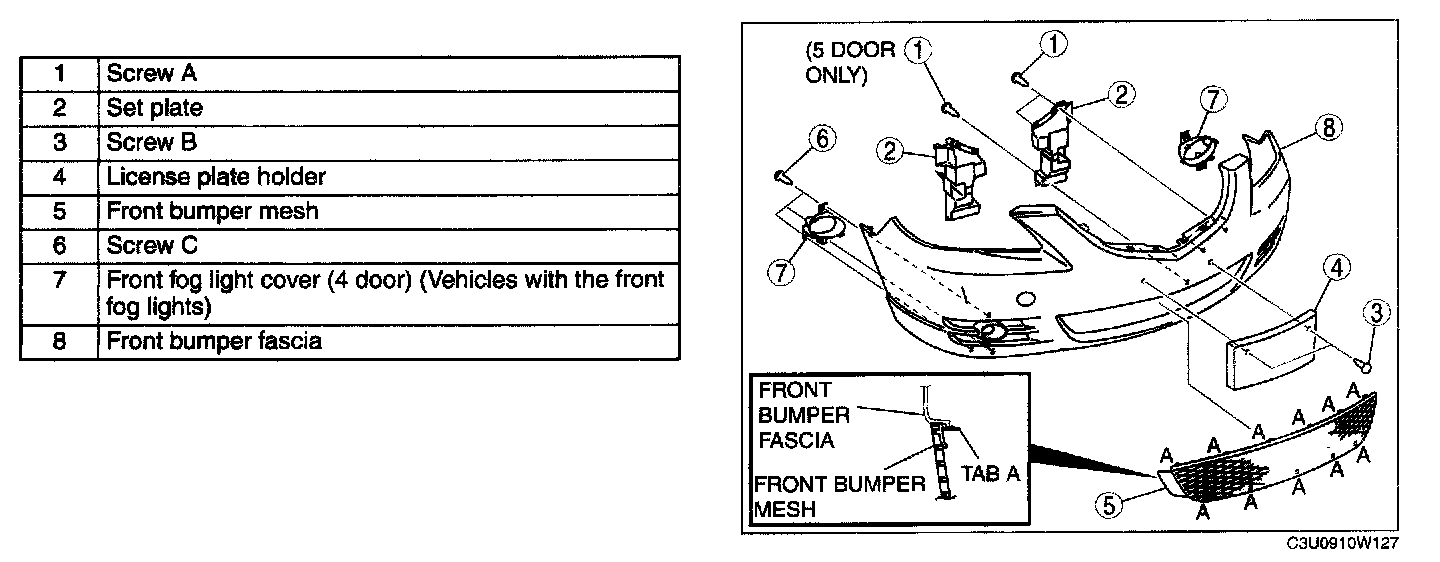

Standard Type

1. Remove the front tog light. (Vehicles with the front tog lights)
2. Remove the radiator grille. (4 door)

3. Disassemble in the order indicated in the table.

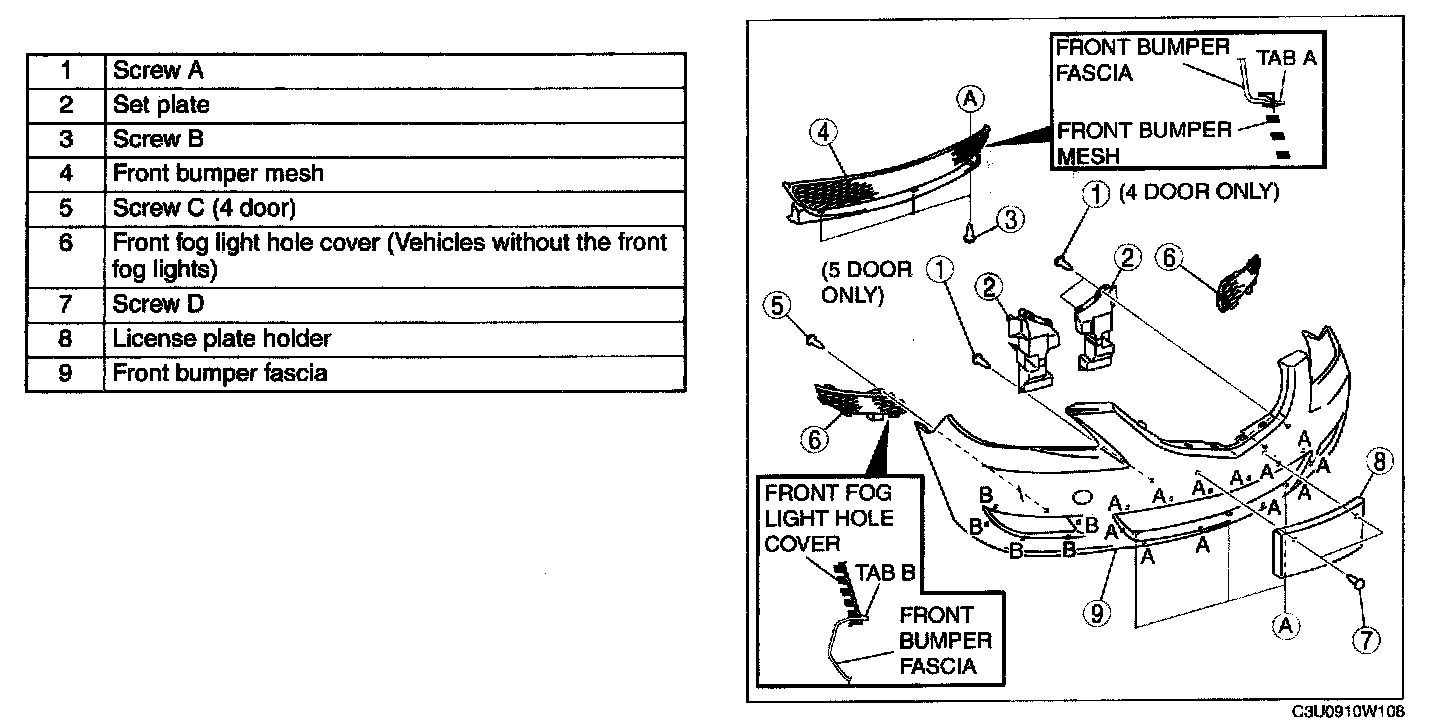

Sports Type

1. Remove the front fog light. (Vehicles with the front fog lights)
2. Remove the radiator grille. (4 door)

3. Disassemble in the order indicated in the table.
4. Assemble in the reverse order of disassembly.
