Liftgate Upper Trim

LIFTGATE UPPER TRIM REMOVAL/INSTALLATION

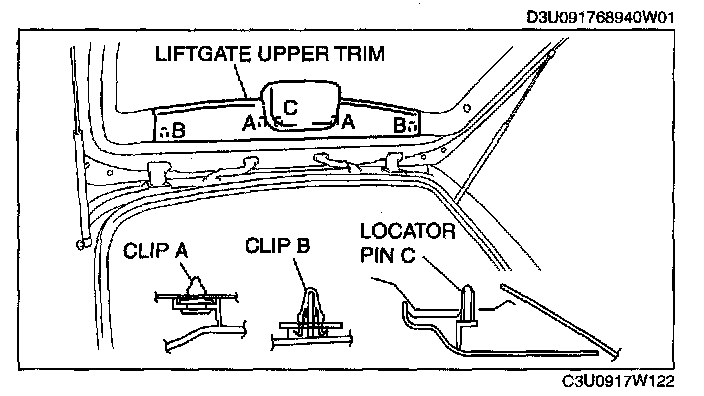

1. Pull the litigate upper trim outward, then detach the clips A, B and the locator pin C from the liftgate.
2. Remove the liftgate upper trim.
3. Install in the reverse order of removal.
