Console: Service and Repair

CONSOLE REMOVAL/INSTALLATION

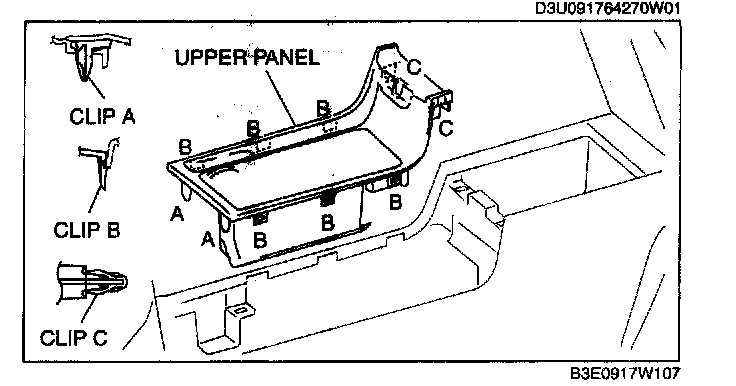

1. Detach clips A, B and C and remove the upper panel.

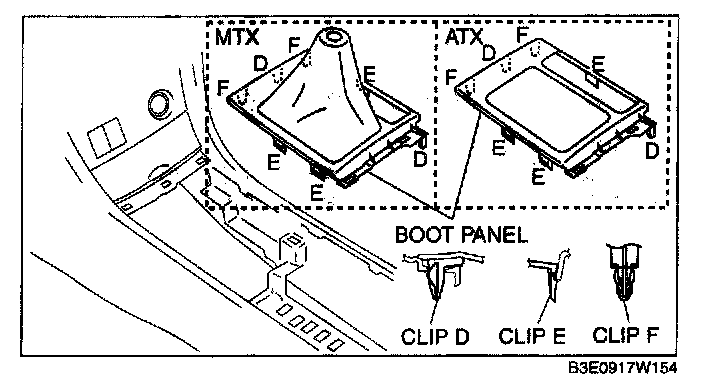

2. Detach clips D, E and F and remove the boot panel.

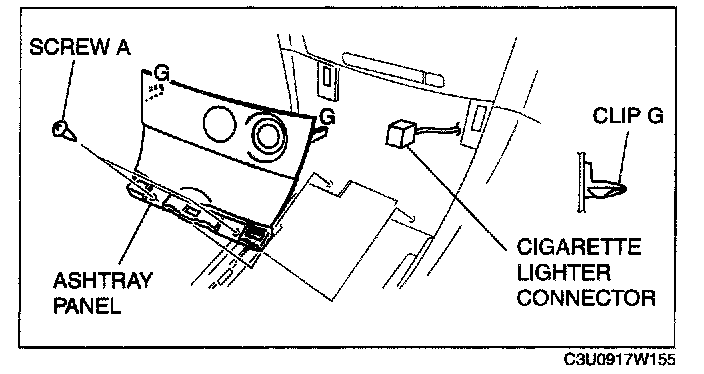

3. Remove screws A.
4. Detach clips G.
5. Disconnect the cigarette lighter connector.
6. Remove the ashtray illumination, then remove the ashtray panel.

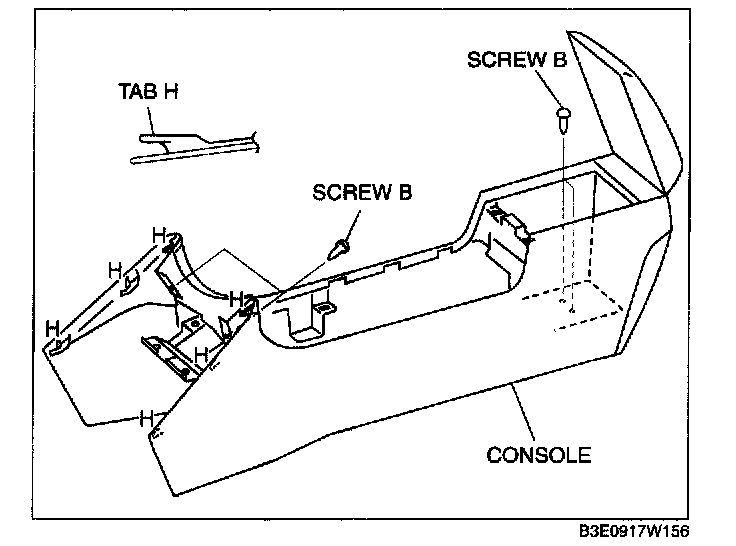

7. Remove the screws B.
8. Detach tabs H and remove the console.
9. Install in the reverse order of removal.
