Outer Mirror Garnish

OUTER MIRROR GARNISH REMOVAL

1. Remove the mirror glass from the outer mirror.




2. Pinch the clip ends using pincers and detach the clips by pushing them forward.

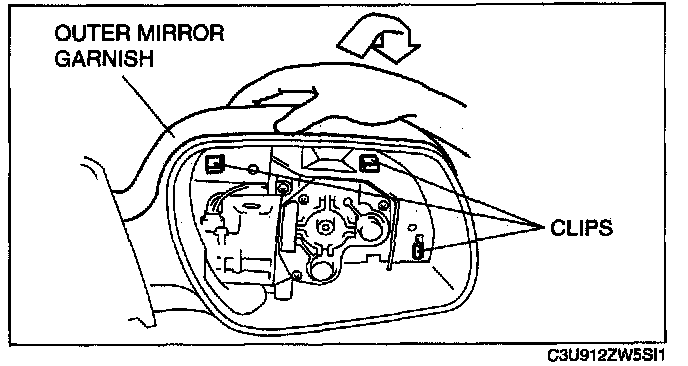

3. Grasp the upper side of the outer mirror garnish and remove it by pulling it in the direction of the arrow.

OUTER MIRROR GARNISH INSTALLATION




1. Position the outer mirror garnish against the mirror body in the direction of the arrow shown in the figure, and insert the outer mirror garnish clips (6 locations) into the mirror body.
2. Install the outer mirror garnish so that there are no gaps around the component.
