WDS Scan Tool
Active Command Modes Procedure 1.

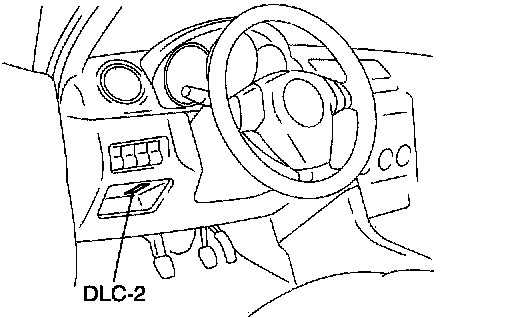

Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector.
2.
Turn the ignition switch to the ON position (engine off) or start the engine.
3.
Activate active command modes using the WDS or equivalent.

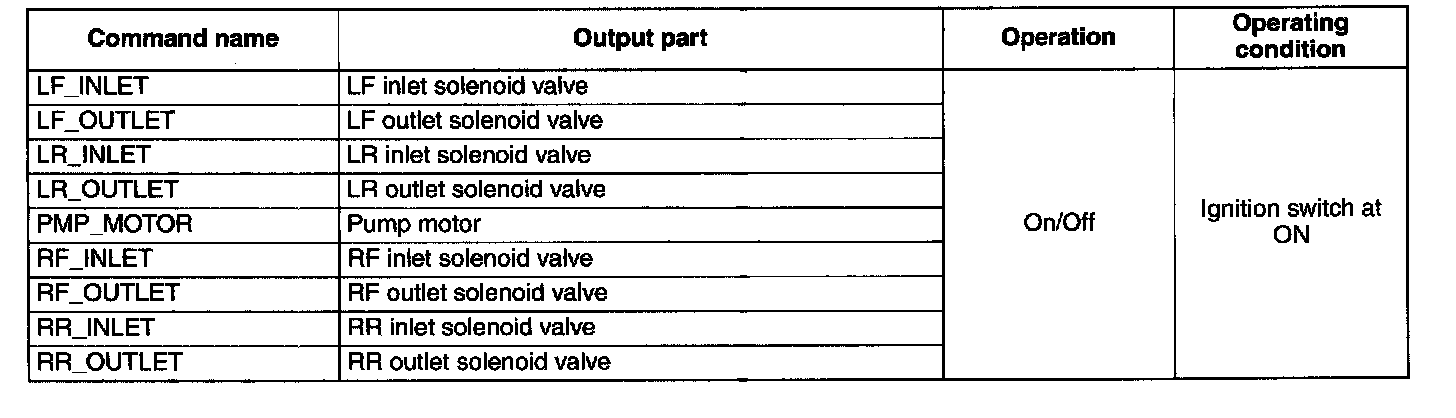

Active Command Modes Table
