Air Duct: Service and Repair

REAR HEAT DUCT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Front seat
2. Audio amplifier (BOSE)
3. Woofer (BOSE)
4. Front scuff plate
5. Console
6. Front side trim
7. Rear scuff plate
8. B-pillar lower trim
9. Lower anchor of the front seat belt
10. Tire house trim
11. Fuel-filler lid opener lever cover
12. Side wall
13. Floor covering

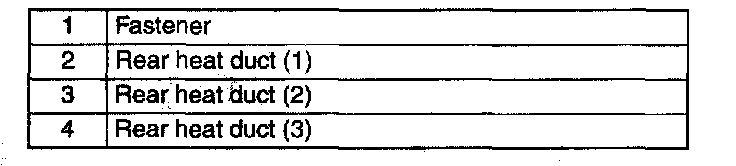

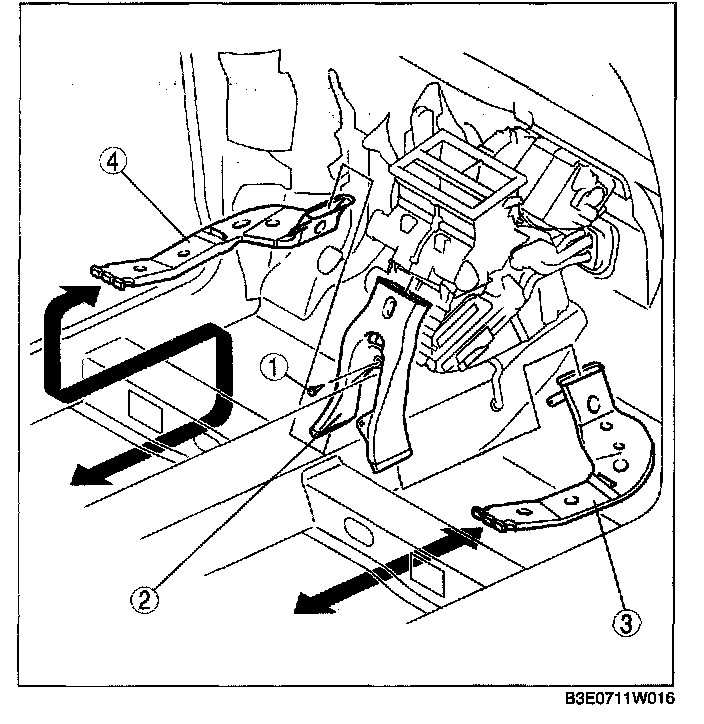

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
