Procedures
AUTO LIGHT ILLUMINATION LEVEL SETTING 1.

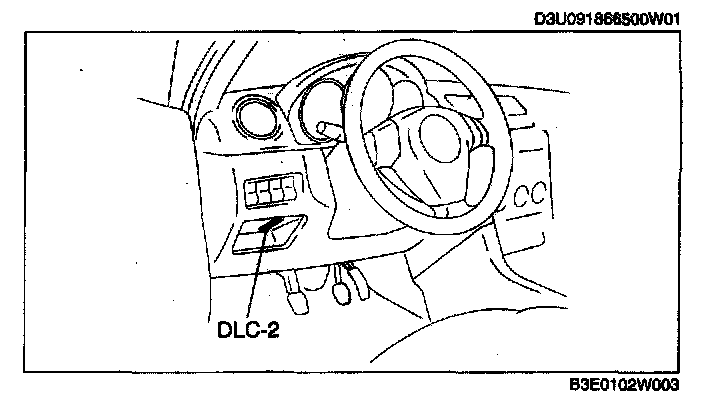

Connect the WDS or equivalent to the DLC-2 (16-pin).
2.
Select "Module programming" from the menu.
3.
Select "Programmable Parameters".
4.
Select "Exterior Lighting".
5.
Select "Standard" or "Low" on the WDS or equivalent to set the illumination level.
