Oscilloscope Patterns and Waveforms

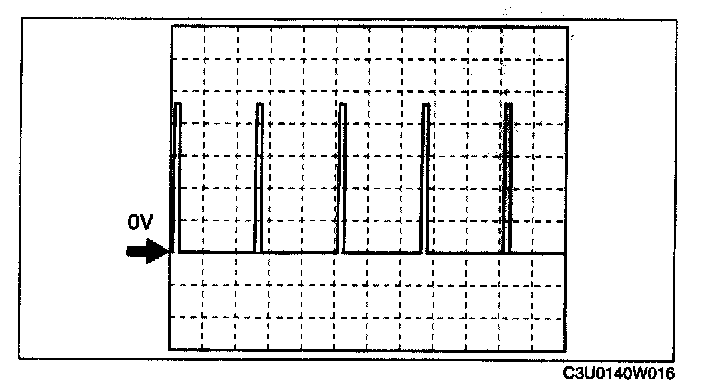

INSPECTION USING AN OSCILLOSCOPE (REFERENCE)APP signalAccelerator pedal is released
Accelerator pedal is depressedPCM terminals -
1AL(+) - 2AA(-)
Oscilloscope setting -
2.5 V/DIV (Y),
2 ms/DIV (X), DC range
Vehicle condition -
Ignition switch is turned to the ON position. (engine off)
