Neutral Safety Switch: Service and Repair

NEUTRAL SWITCH REMOVAL/INSTALLATION

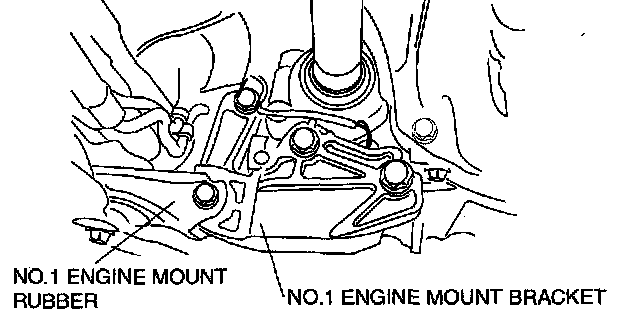

1. Remove the No.1 engine mount rubber and No.1 engine mount bracket.

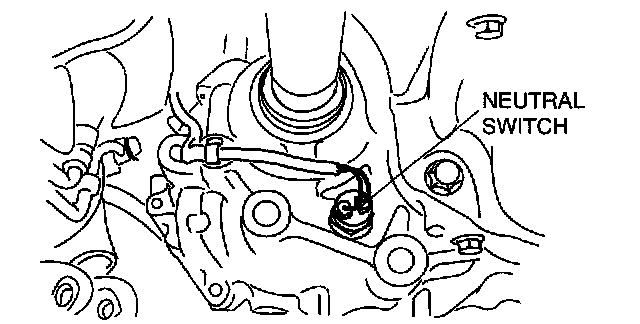

2. Remove the neutral switch.
3. Install the neutral switch (with a new packing) to the transmission case.
Tightening torque 19.6 - 29.4 Nm (2.0 - 2.9 kgf-m, 14.5 - 21.6 ft. lbs.)

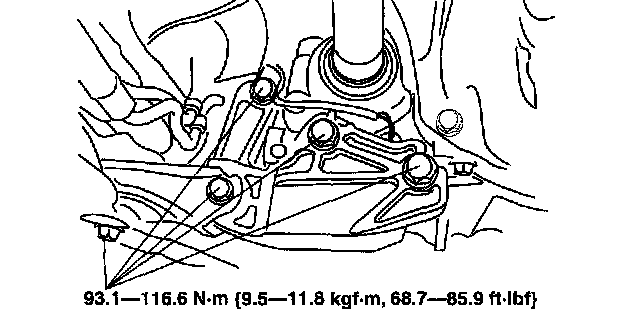

4. Install the No.1 engine mount bracket and No.1 engine mount rubber.
