Shift Interlock Solenoid: Testing and Inspection
SHIFT-LOCK SOLENOID INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the console.
3.
Disconnect the selector lever component connector.
4.

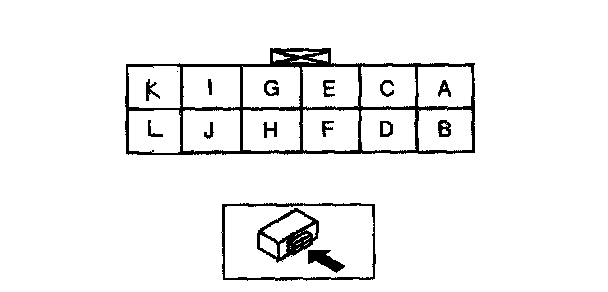

Measure the continuity between terminals E and F)
^
If there is any malfunction, replace the selector lever component.
