Manual Window Regulator
REAR MANUAL WINDOW REGULATOR REMOVAL/INSTALLATION 1.
Remove the following parts:
1.
Rear belt line molding
2.
Sad garnish (5 door)
3.
Rear door garnish (5 door)
4.
Regulator handle
5.
Rear door trim
6.
Rear door glass
2.

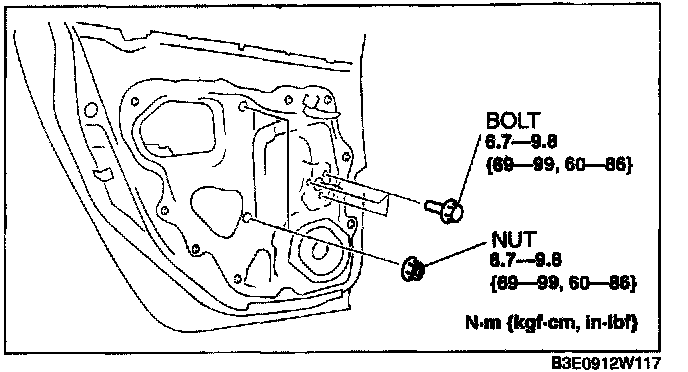

Remove the nuts and the bolts.
3.

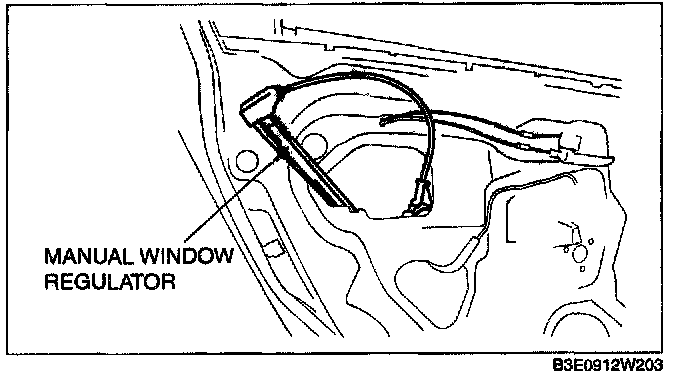

Remove the rear manual window regulator through the rear door unit hole.
4.
Install in the reverse order of removal.
