Power Window Regulator

REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Rear belt line molding (4 door)
2. Sail garnish (5 door)
3. Rear door garnish (5 door)
4. Rear door trim
5. Rear door speaker
6. Rear door glass
7. Rear power window motor

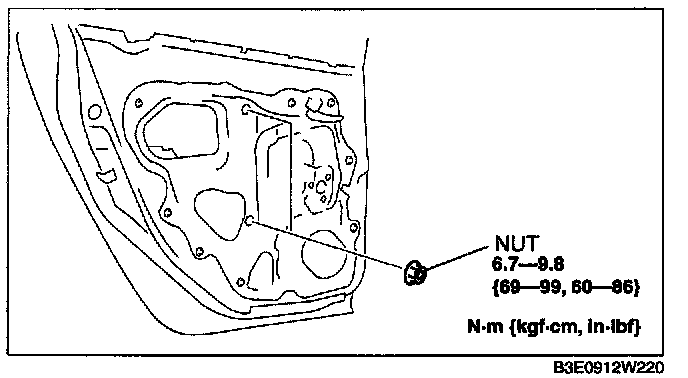

3. Remove the nuts.

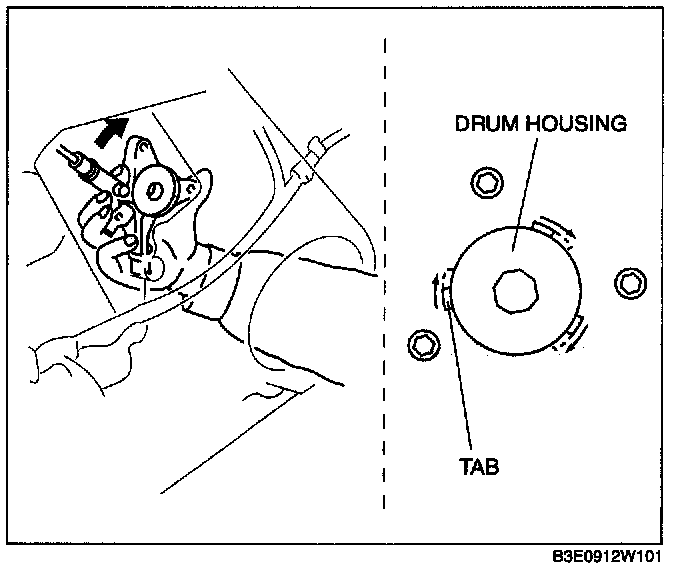

4. Insert your hand through the rear speaker installation hole, rotate the drum housing in the direction shown in the figure and disengage the tabs from the rear door module.

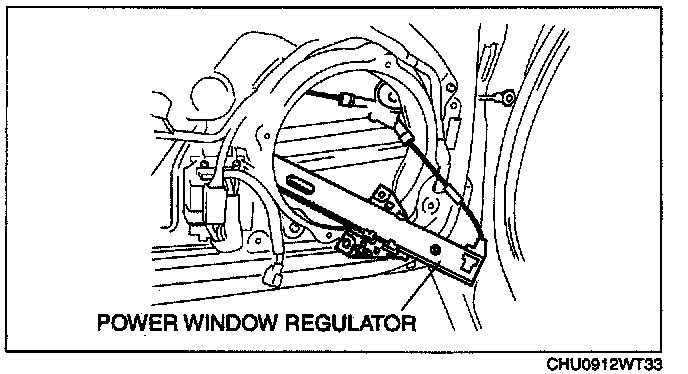

5. Remove the rear power window regulator through the speaker installation hole.
6. Install In the reverse order of removal.

CAUTION: Make sure the cable does not unspool from the drum housing when installing.
