Console Removal/Installation

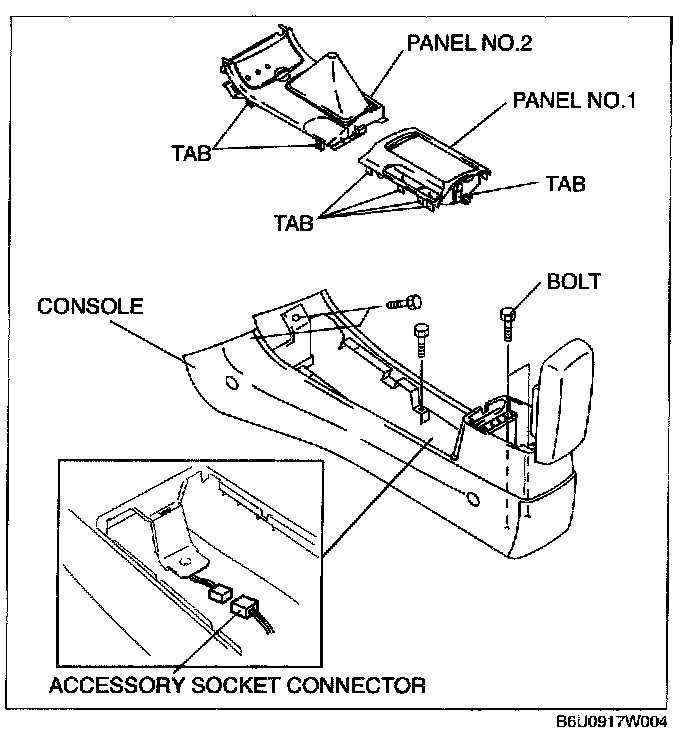

CONSOLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. For manual trans. vehicle, remove the shift lever knob.

3. Remove the panel No.1 using a tape-wrapped screwdriver.
4. Remove the panel No.2 using a tape-wrapped screwdriver, disconnect the cigarette lighter connector, and remove the front ashtray illumination.
5. Remove the bolts.
6. Disconnect the accessory socket connector.
7. Install in the reverse order of removal.
