Thermostat: Service and Repair
THERMOSTAT REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Drain the engine coolant.
3.
Remove the
drive belt.
4.
Remove the P/S oil pump with hoses and pipe still connected. Position the P/S oil pump out of the way.
5.

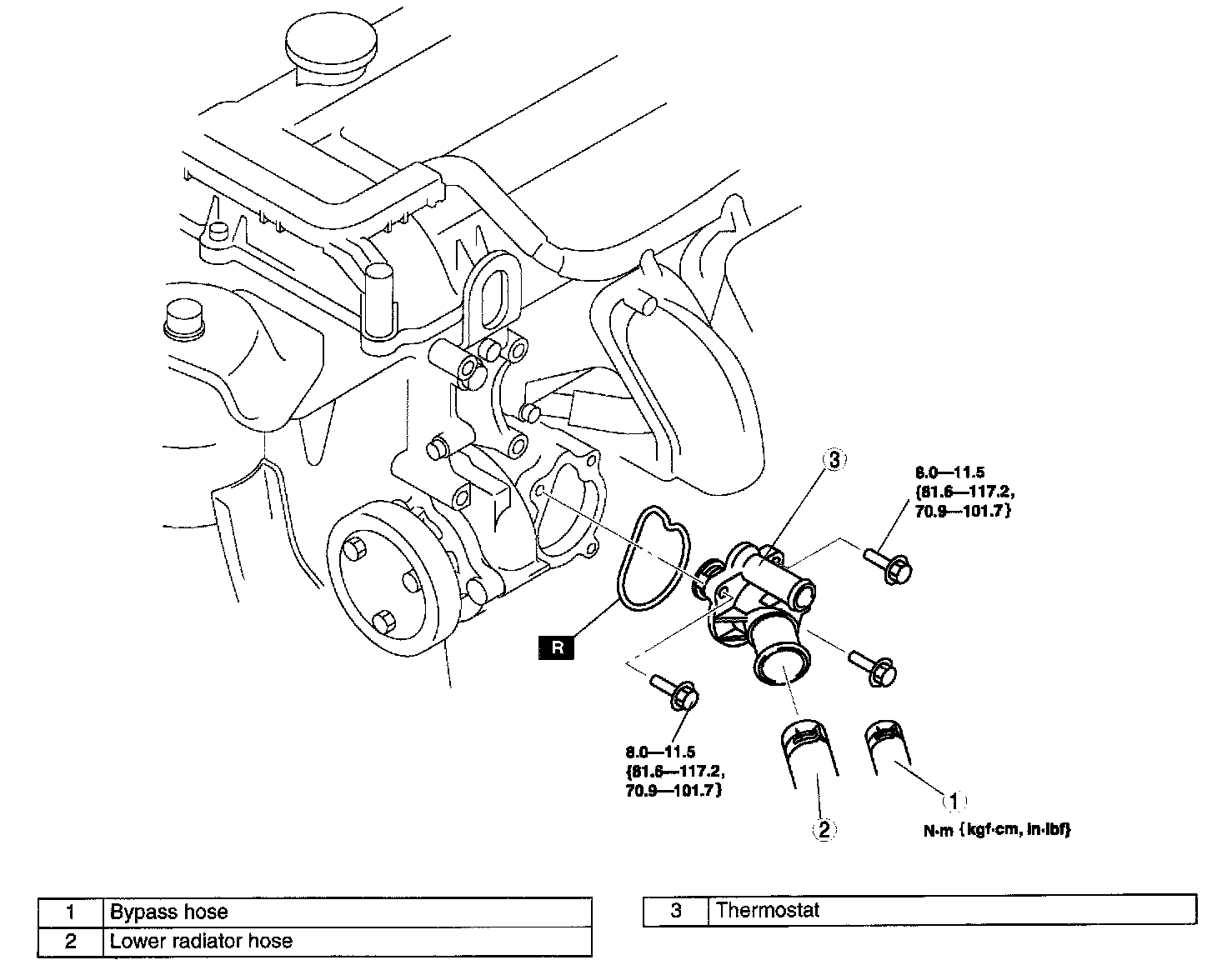

Remove in the order indicated in the table.
6.
Install in the reverse order of removal.
7.
Add the engine coolant.
8.
Inspect the engine coolant leakage.
