Full Auto Air Conditioning
PWM UNIT INSPECTION 1.
Connect the PWM unit connector.
2.
Turn the ignition switch to ON position.

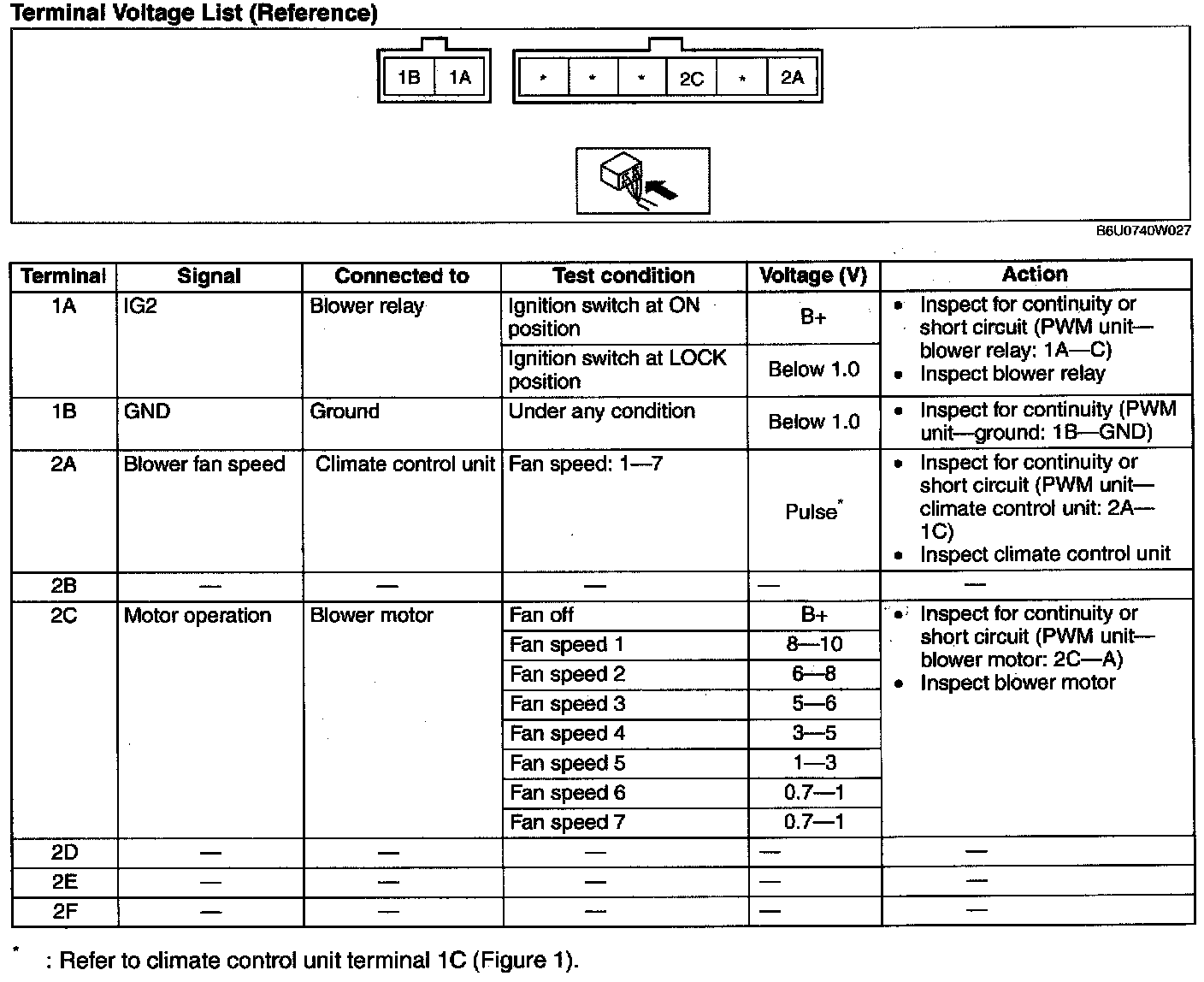

Terminal Voltage List (Reference):
3.
Measure the voltage at each PWM unit terminal and refer to the terminal voltage list.
-
If not as specified, inspect the parts listed under "Action" and the related wiring harness.
