Headlamp Bulb: Service and Repair

HEADLIGHT BULB REMOVAL/INSTALLATION

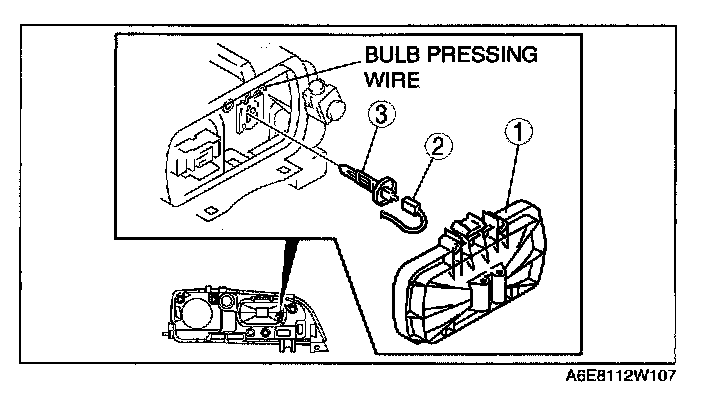

Low-beam
1. Disconnect the negative battery cable.
2. Disconnect the front combination light.

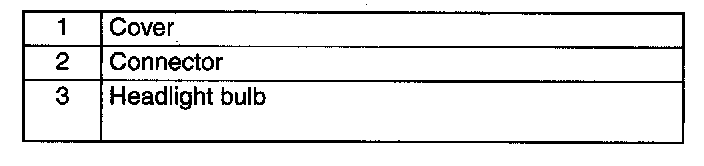

3. Remove in the order indicated in the table.

CAUTION: A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is soiled, excessive heat will build up and the light's life will be shortened. When replacing the bulb, hold the metal flange, not the glass.

4. Install in the reverse order of removal.

Headlight bulb removal note
1. Release the bulb pressing wire to remove the headlight bulb.

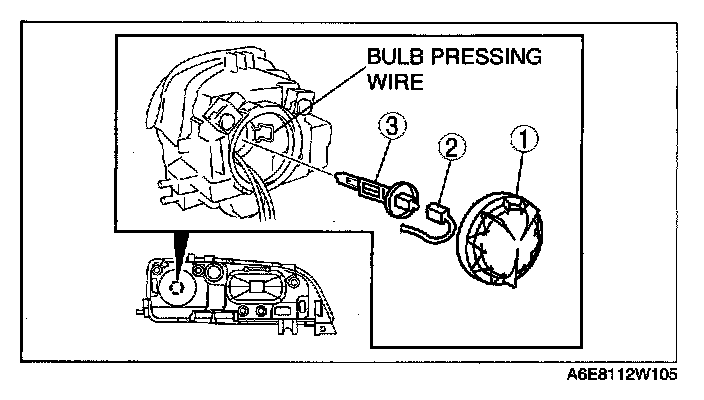

High-beam
1. Disconnect the negative battery cable.







2. Remove in the order indicated in the table.

CAUTION: A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is soiled, excessive heat will build up and the light's life will be shortened. When replacing the bulb, hold the metal flange, not the glass.

3. Install in the reverse order of removal.

Headlight bulb removal note
1. Release the bulb pressing wire to remove the headlight bulb.
