Positive Crankcase Ventilation: Testing and Inspection
POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the intake manifold, (see INTAKE AIR SYSTEM REMOVAL/INSTALLATION.)
3.
Remove the PCV valve.
4.

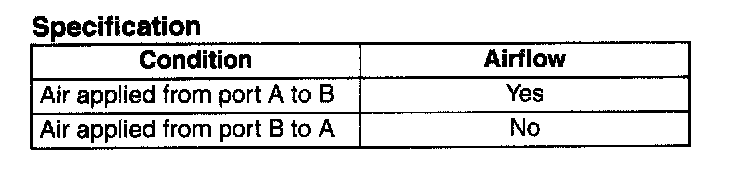

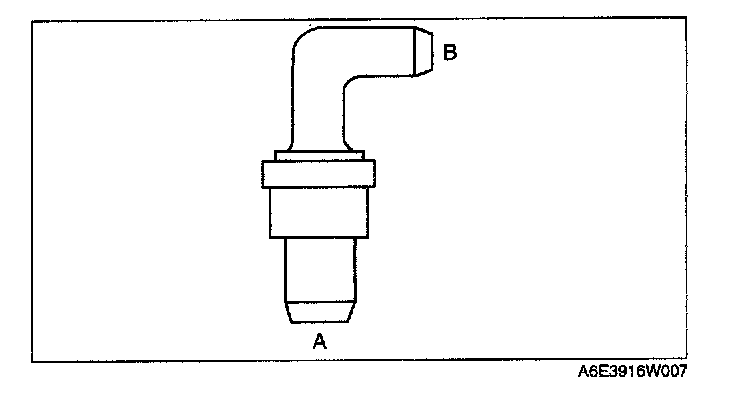

Blow through the valve and verify that air flows as specified.
-
If not as specified, replace the PCV valve.
