Oscilloscope Patterns and Waveforms

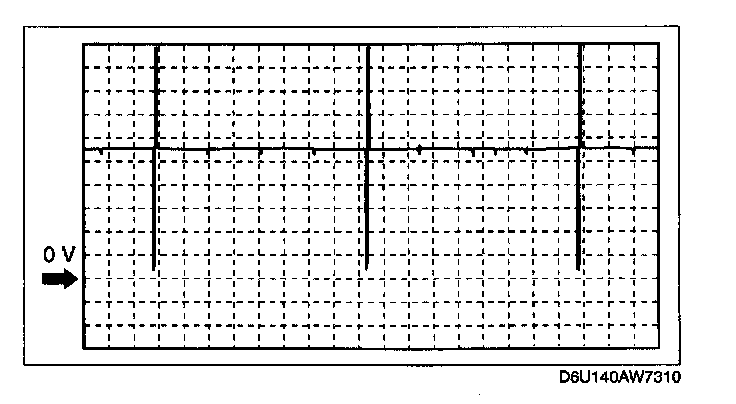

Inspection Using An Oscilloscope (Reference) (California emission regulation applicable ATX model)Ignition coil signal -
PCM terminals
-
No.1 cylinder: 102 (+) - 26 (-)
-
No.2 cylinder: 78 (+) - 26 (-)
-
No.3 cylinder: 103 (+) - 26 (-)
-
No.4 cylinder: 104 (+) - 26 (-)
-
Oscilloscope setting:
2.5V/DIV (Y),
20 ms/DIV (X), DC range
-
Vehicle condition: Idle after warm up (no load)
