Oscilloscope Patterns and Waveforms

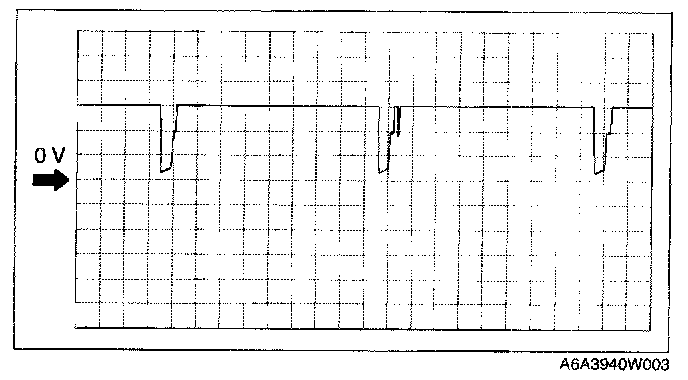

Inspection Using An Oscilloscope (Reference) (Except for California emission regulation applicable ATX model)IGT1, IGT2 control signals -
PCM terminals
-
IGT1(No.1 and No.4): 1A(+) - 1D(-)
-
IGT2(No.2 and No.3): 1B(+) - 1C(-)
-
Oscilloscope setting:
4 V/DIV (Y),
0.01 ms/DIV (X), DC range
-
Vehicle condition: Idle after warm up (engine speed approx.
700 rpm, no load, P/S off, A/C off)
