Clutch Switch: Testing and Inspection

CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION

NOTE: Perform the following inspection only when directed.

Continuity Inspection

1. Disconnect the negative battery cable.
2. Remove the clutch switch. (See CLUTCH PEDAL REMOVAL/INSTALLATION.)

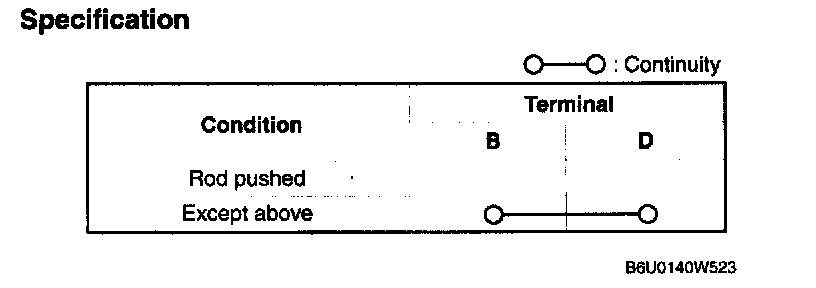

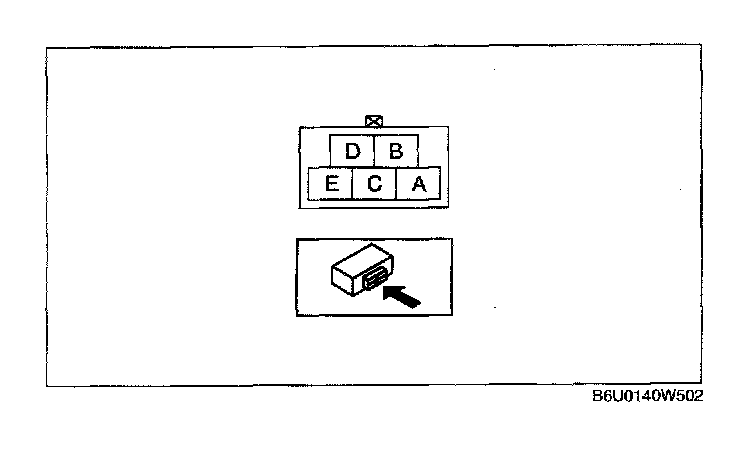

3. Inspect for continuity between the clutch switch terminals B and D using an ohmmeter.
- If the clutch switch is okay, but the PID value is out of specification, perform the "Circuit Open/Short Inspection".
- If not as specified, replace the clutch switch. (See CLUTCH PEDAL REMOVAL/ INSTALLATION.)

Circuit Open/Short Inspection




1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION.)

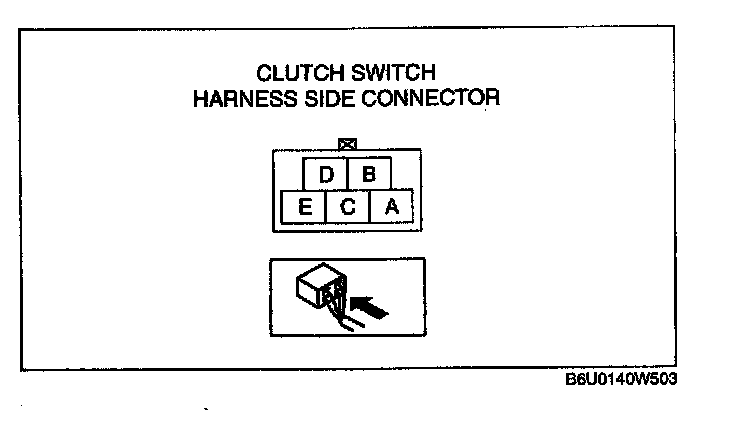

2. Inspect the following harness for open or short circuit. (Continuity check)

Open circuit
- Clutch switch terminal B and PCM terminal 29
- Clutch switch terminal D and body GND

Short circuit
- Clutch switch terminal B and power supply
- Clutch switch terminal B and body GND
