Fuel System - MIL ON/DTC P2135 Stored

Bulletin No: 01-031/11
Last Issued: 09/27/2011

Subject:
MIL ILLUMINATION WITH DTC P2135





BULLETIN NOTE





APPLICABLE MODEL(S)/VINS

DESCRIPTION

Some vehicles may experience a MIL illumination with DTC P2135 stored in memory.

Customers having this concern should have their vehicle repaired using the following repair procedure.

REPAIR PROCEDURE

1. Verify DTC P2135 is stored in memory.

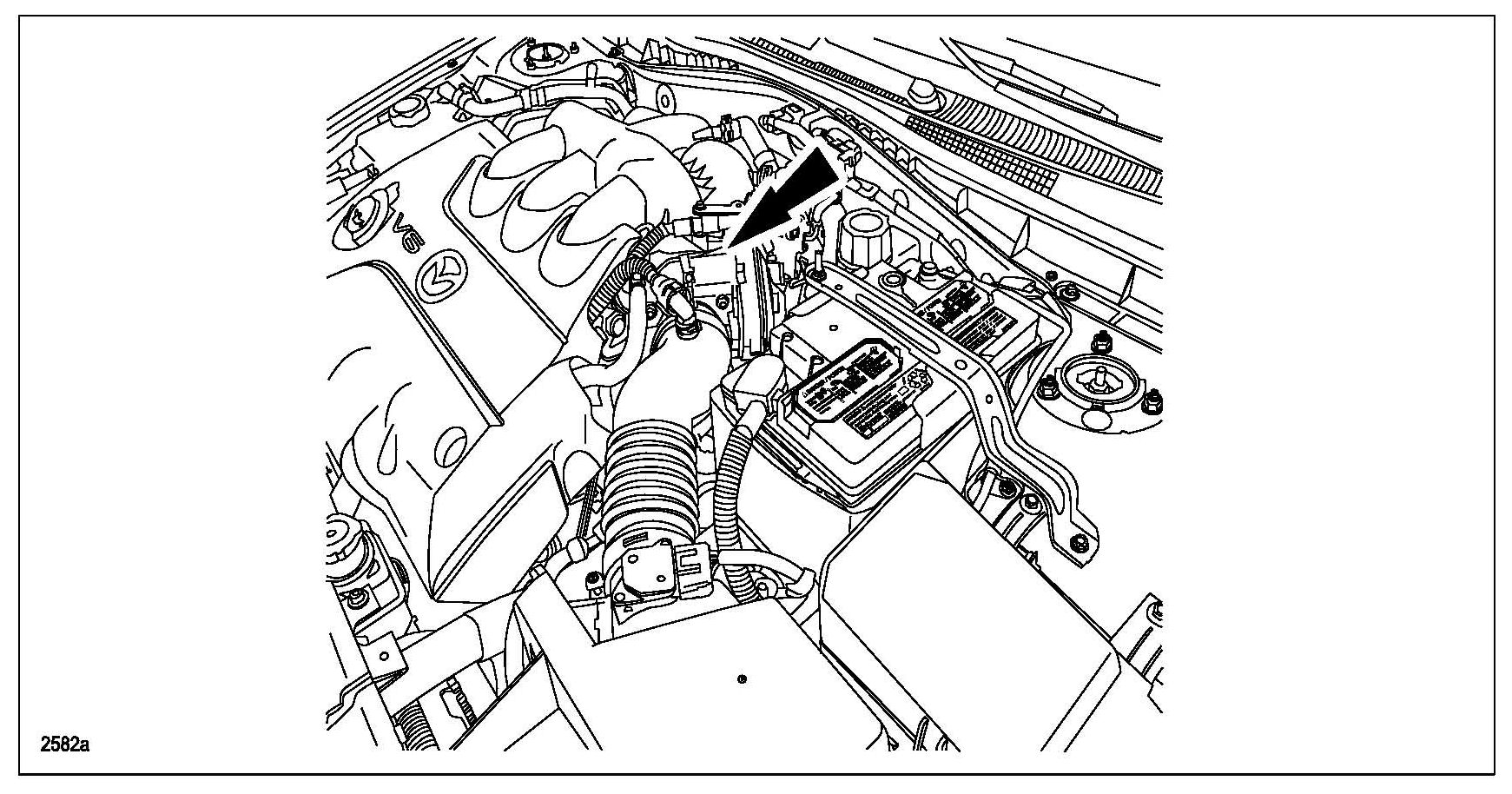

2. Replace throttle body according to Workshop Manual (section 01-13 INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [AJ]).

3. Erase DTC.

4. Verify repair.

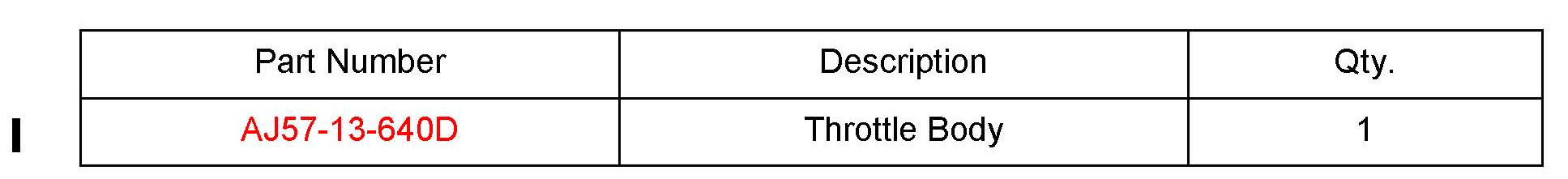

PART(S) INFORMATION

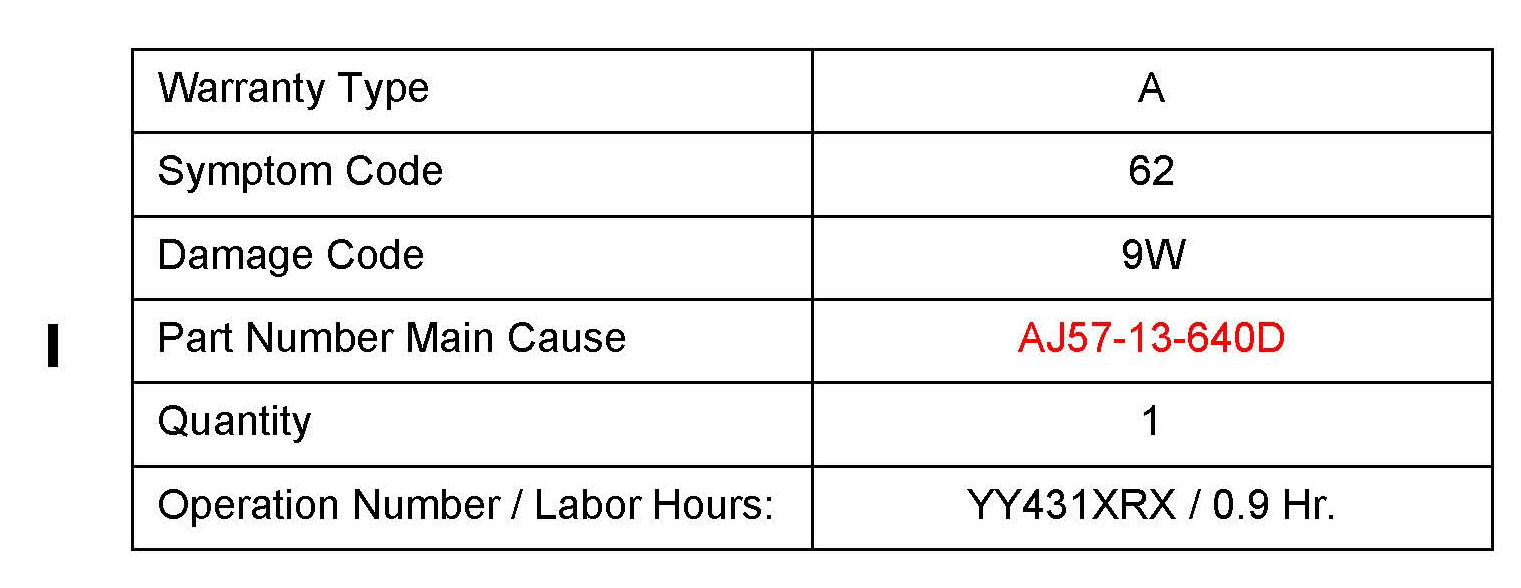

WARRANTY INFORMATION

NOTE:

^ This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair.

^ This repair will be covered under Mazda's New Vehicle Limited Warranty term.

^ Additional diagnostic time cannot be claimed for this repair.
