Component Tests and General Diagnostics

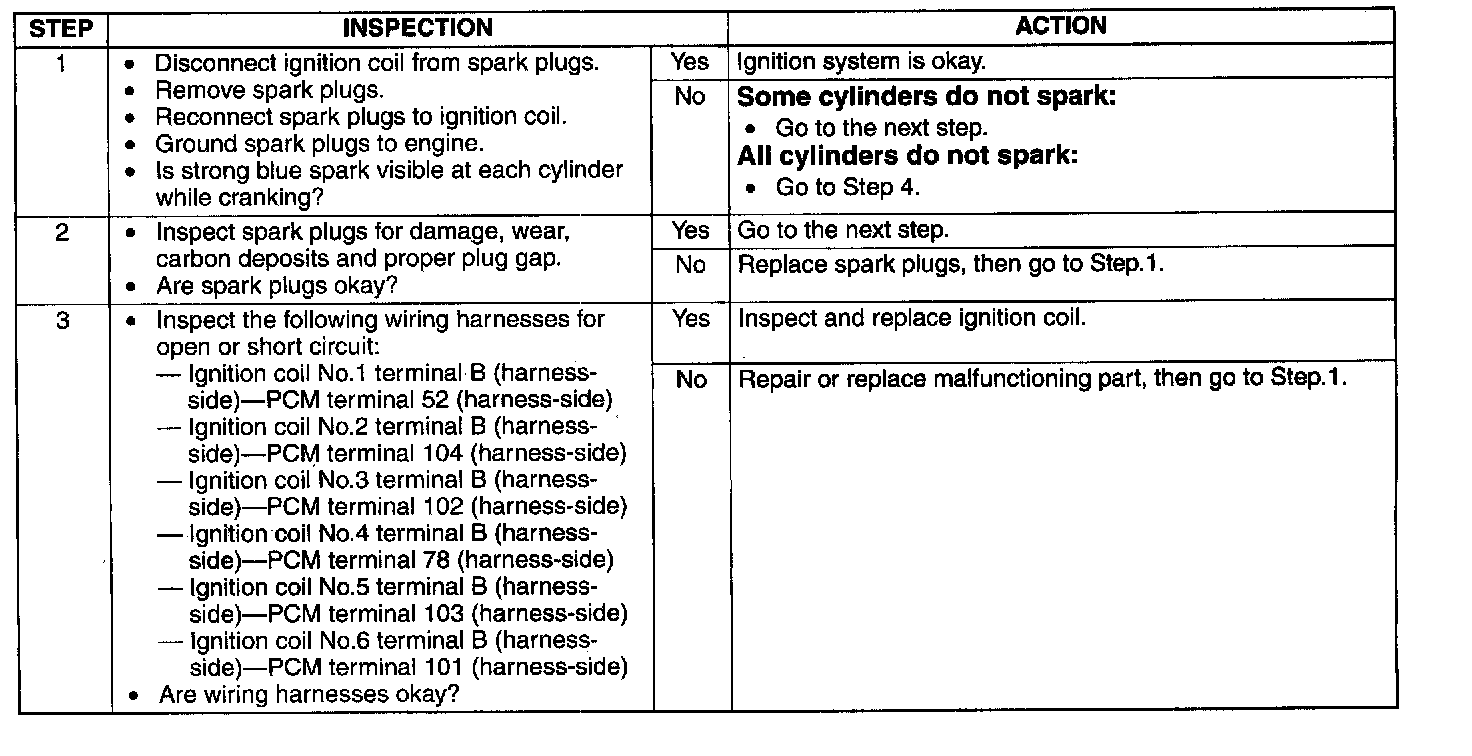

Spark TestStep 1 - 3:

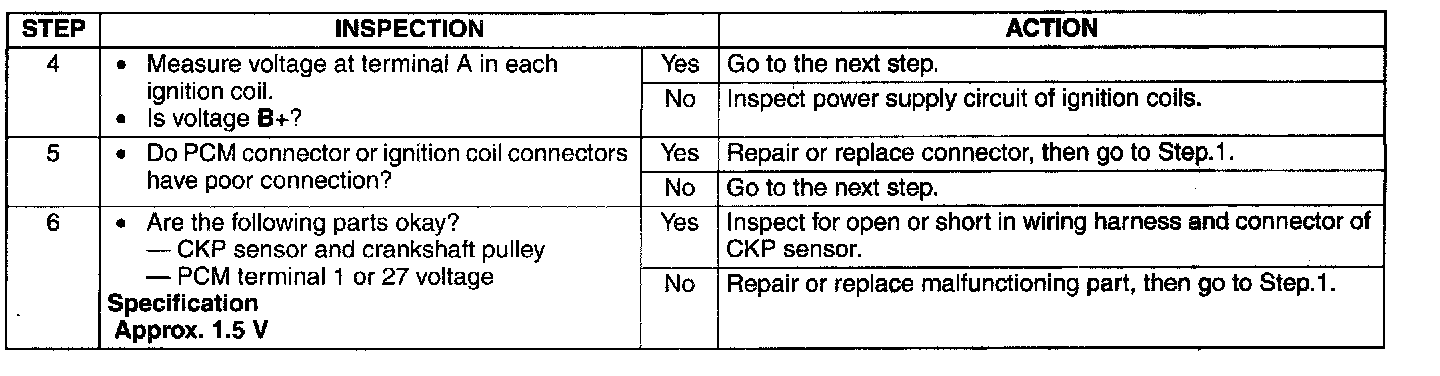

Step 4 - 6:
1.
Disconnect the
fuel pump relay.
2.
Verify that each high-tension lead and connector is connected properly.
3.
Inspect the
ignition system in the following procedure:
WARNING: HIGH VOLTAGE IN THE IGNITION SYSTEM CAN CAUSE STRONG ELECTRICAL SHOCK WHICH CAN RESULT IN SERIOUS INJURY. AVOID DIRECT CONTACT TO THE VEHICLE BODY DURING THE GIVEN SPARK TEST.
