Timing Chain
TIMING CHAIN Part 1:
Part 2:

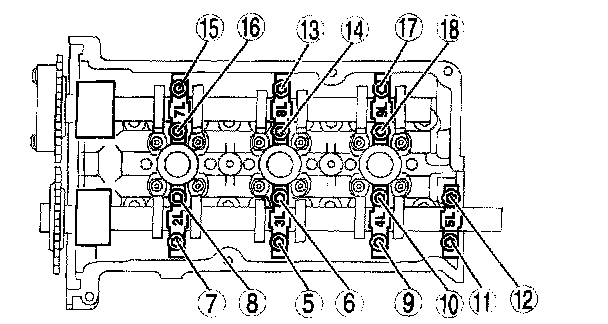

Loosen the remaining bolts 7-8 turns in the indicated sequence to allow the
camshaft (LH) to rise

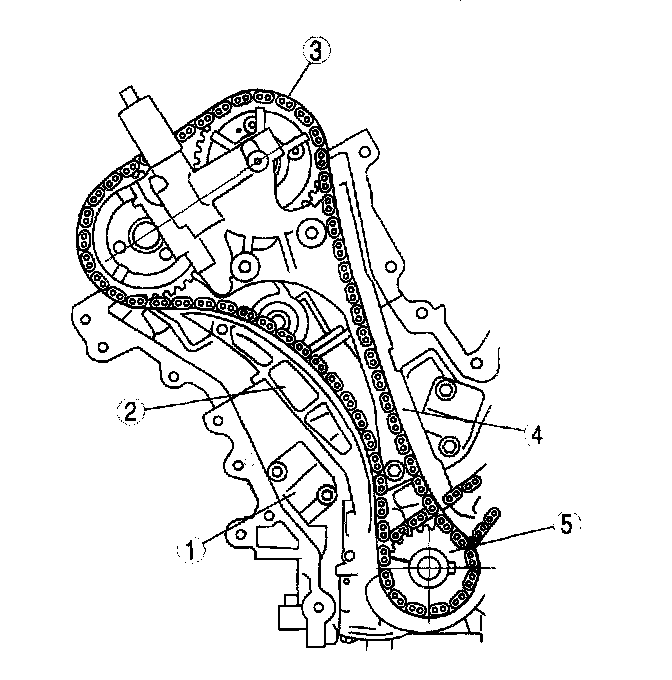

Remove the
timing chain (RH) in the following order.
Chain tensioner
Tensioner arm
Timing chain Chain guide
Timing chain crankshaft sprocket
